2-channel manifold ROCOOL 600

for pressure measurement devicesfor temperature control circuitsdigital

Product description

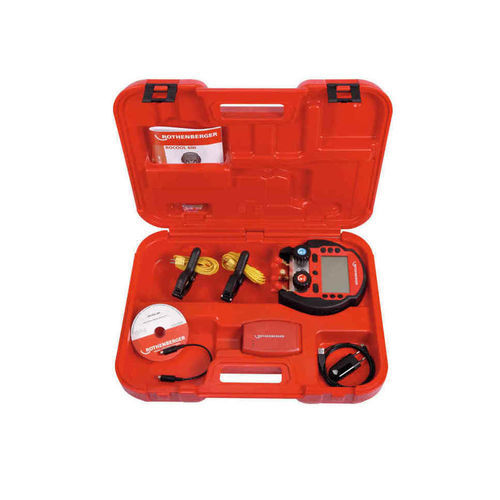

The ROCOOL 600 is a modular, upgradeable digital manifold for HVAC/R installation and service. The set includes the base unit and two temperature clamp sensors stored in the transport case. The device performs automatic calculation of superheat and subcooling and supports a selection of more than 80 refrigerants (including R32 and R744). The external Red Box enables plant-related reporting and data export. An optional Pirani vacuum probe is available for high‑vacuum measurements.

Key features

• Complete set with external Red Box and 2 temperature sensors
• Preconfigured for over 80 refrigerants (incl. R32, R744); refrigerants can be added via software update
• Automatic simultaneous calculation of superheat and subcooling
• Data Viewer software generates automatic reports from recorded data (suitable for handover to customers)
• Optional external Pirani vacuum probe for high‑vacuum readings directly on the refrigeration circuit

Functions and features

• R32 compatible
• Adjustable pressure display
• Rugged housing and transport case
• Battery operation (1 × 9V alkaline included)
• RO SERVICE+ warranty services

Scope of delivery

• ROCOOL 600 manifold unit
• 2 temperature clamp sensors
• Digital manifold / digital manometer
• Red Box ROCOOL (external data module)
• Redbox bulk
• Alkaline 9V battery
• Operating instructions

Technical data

• Working pressure: -1 – 60 bar
• Temperature measuring range: -50 – 200 °C
• Operating temperature: -10 – 50 °C
• Connection: bottle adapter / 1/4" SAE
• Battery: 1 × 9V alkaline (included)
• Display size: 11 cm
• Data storage capacity: 96 h
• Supported refrigerants: R11 – R744 (over 80 configured)
