4-way manifold R22-R407C

for pressure measurement devicesfor air conditioningshut-off

Product description
With ROTHENBERGER manifold PLUS sets, refrigeration installers and technicians can install and service refrigeration, air-conditioning and heat pump systems. The 4-way manifold with 3/8" vacuum connection enables fast evacuation. Sets include large gauges, hoses with shut-off valves and a sturdy transport case. Suitable for refrigerants R22–R407C and for bending soft copper and multilayer tubes 10–26 mm (3/8–7/8").

Key features

• 4-way manifold and matching pressure hoses in one set
• Large 80 mm diameter gauges, accuracy class 1.6
• Hoses with shut-off valves and 3/8" vacuum connection
• Pressure components rated up to 60 bar
• Protective rubber casing for gauges
• Supplied in a robust plastic transport case
• Replaceable bending formers via plug mechanism

Functions and features

• Compatible with R32 technology
• Vibration damping for stable readings
• Viewing window on gauges
• Adjustable pressure gauge display
• Robust housing for field use
• Optimised pressure hose length for installation tasks
• Transport case for storage and protection

Scope of delivery

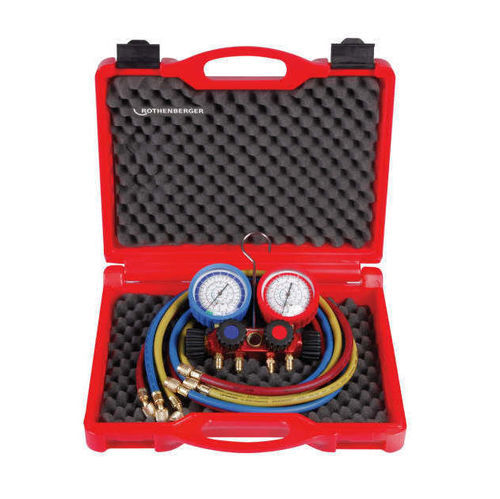

• Manifold gauge set, standard, 4-way, R22–R407C

Technical data
Working pressure range: -1 – 34 bar
Gauge diameter: 80 mm
Test pressure range: -1 – 34 bar

Characteristics / technical specifications

• Brand: ROTHENBERGER
• Model designation: Installer's aid set 4-way stand.
• Article number: No. 170601
• Compatible refrigerants: R22, R407C
• Working pressure range: -1 – 34 bar
• Test pressure range: -1 – 34 bar
• Gauge diameter: 80 mm
• Pressure gauge accuracy: Class 1.6
• Valve block: 4-way valve block with 3/8" vacuum connection
• Hoses: with shut-off valves
• Transport/storage: sturdy plastic case included
• Bending formers: replaceable via plug mechanism
