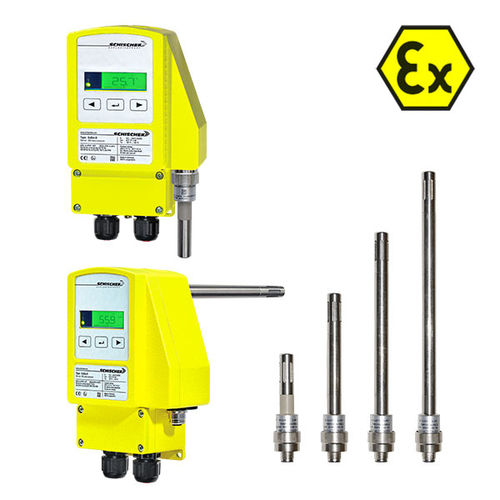

Room thermo-hygrostat ExBin-D

with LCD displayduct-mountexplosion-proof

Binary explosion proof transmitter type ExBin-D for use as thermostat and/or hygrostat in HVAC systems. - Measurement range temperature: -40...+125 °C (depending on sensor type) - Measurement range humidity: 0...100 %rH (depending on sensor type) - suitable sensors ExPro-B.. available from 50 up to 200 mm length - Certified according to ATEX, IECEx and more - use in hazardous locations - for all kind of gas, mist, vapours and dust - no additional module in the panel required - no intrinsically safe wiring required - all parameters can be adjusted on site without additional tools - 24 VAC/DC supply - 1-channel with 2 potential free contacts (1 × °C, 1 × %rH) - 2-channel with 4 potential free contacts (2 × °C, 2 × %rH) - Switch-point for temperature and humidity adjustable separately - selectable on site if used for room or duct applications - Indication of actual value (can be switched off) - Switching status display over LED - Aluminium housing IP66 - integrated terminal box - Dimensions (H × W × D) 180 × 107 × 66 mm - Weight approx. 1 kg, VA version approx. 2,3 kg - Stainless steel version or with offshore/marine coating optional - ExBin-D for use in Zone 1, 2, 21 and 22 - RedBin-D for use in zone 2 and 22 - InBin-D for use in safe area (industrial applications)
