Signal amplifier ExBin-A

switchingelectronicdigital

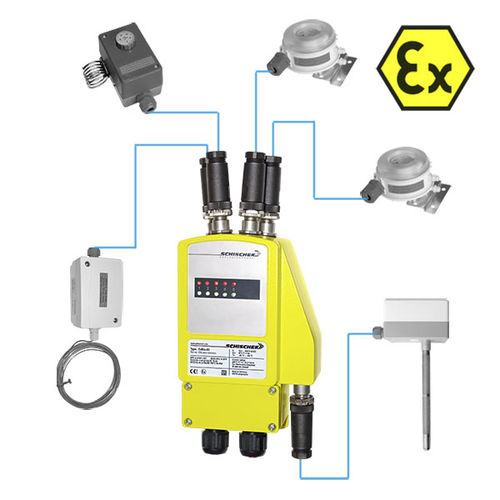

Binary explosion proof switching amplifier type ExBin-A for connection of 1, 2 or 5 passive potential-free sensors for use in HVAC systems. - Sockets for 1, 2 or 5 passive potential-free binary sensors (depending on type) - suitable passive, binary sensors type ExSens available optionally - Certified according to ATEX, IECEx and more - use in hazardous locations - for all kind of gas, mist, vapours and dust - no additional module in the panel required - no intrinsically safe wiring required - 24 VAC/DC supply - 1 up to 5 contacts with common supply unit - 1 or 2 contacts with additional clamp for time switch relais - Switching status display over LED - Aluminium housing IP66 - integrated terminal box - Dimensions (H × W × D) 180 × 107 × 66 mm - Weight approx. 1 kg, VA version approx. 2,3 kg - Stainless steel version or with offshore/marine coating optional - ExBin-A for use in Zone 1, 2, 21 and 22 - RedBin-A for use in zone 2 and 22 - InBin-A for use in safe area (industrial applications)
