Air flexible piping 661 seriesrubberPVCPU
Add to favorites
Compare this product
Characteristics
- Use
- for air
- Material
- rubber, PVC, PU
- Applications
- laboratory
- Other characteristics
- anti-static, heat-resistant, flame-retardant, spiral
- Inner diameter
8 mm, 9.5 mm, 10 mm
(0.315 in, 0.374 in, 0.394 in)- Outer diameter
12 mm, 16 mm, 19.5 mm
(0.472 in, 0.63 in, 0.768 in)- Pressure
Max.: 6 bar
(87.023 psi)Min.: 3 bar
(43.511 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -30 °C
(-22 °F)
Description

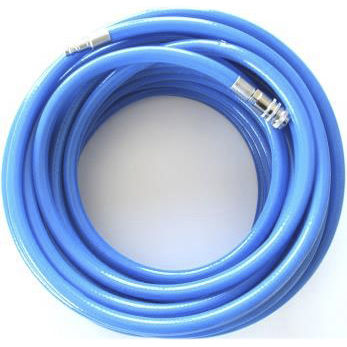

Light duty PVC breathing air hose, 10 meter with CEJN fittings (342 Series)
Product Information
Model : 661250
Size : 10 Meter
Protection Level
Norm EU : EN14593 & EN14594:2005
Markings : CE0158
Notified Body : CE0158 DEKRA EXAM GmbH Laboratory for respiratory protection, protective clothing and gas detection equipment
Protection Factor : A & B
Limitations : See User Instructions
Maintenance : See User Instructions
Product Details
Material : PVC
Colour : Blue
Packaging : 1
Packs per box : 1
RSG compressed air breathing hoses are tested and approved together with the T-AirLine Filter Unit & Regulator and all T-AirLine headtops for a wide variety of applications and tasks. The hoses fulfill the test procedures of the EN14593&EN14594:2005 class A and B.
Both ends of the hoses are fitted with double action safety coupling and nipple for ease of use and safe (dis)connection
