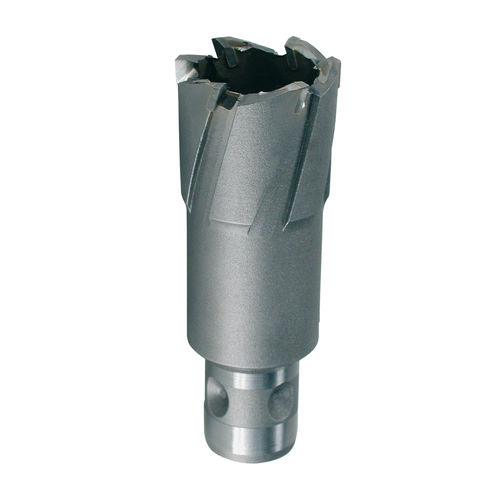

Tungsten carbide core drill 10811 series

Weldon

Core drill with carbide cutting edges. Especially for railway tracks, Hardox/Weldox 400 steels, steel, cast steel, high-chromium alloy steels such as V2A and V4A, and higher alloy steels. Can be used in all column and magnetic drill presses in conjunction with Quick IN system arbor holders, such as Fein KBM 32 Q. Technical data Material TC Coating Uncoated Cutting direction right cutting Shaft Weldon shank Application areas Main application Steel 900 N/mm² Steel 1,100 N/mm² Stainless steel Aluminium Brass Plastics Cast iron Other application Steel 1,300 N/mm² Titanium alloyed
