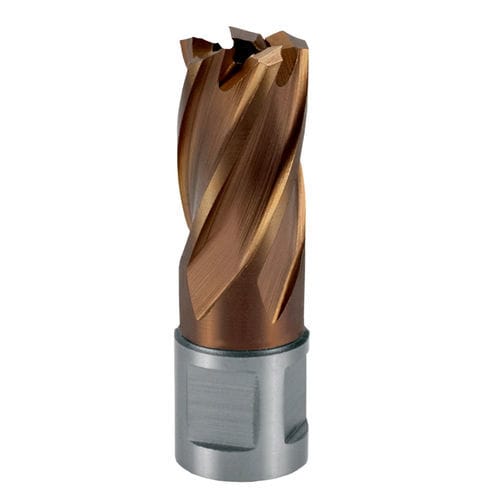

Coated core drill PerforMAX

high-speed steelWeldon

Short description
Core drill for demanding applications in steel for extended tool life. Solid HSS core drill with nanocomposite coating and Weldon shank (¾"), developed for machining high-strength steels and titanium-alloyed materials.

Applications

• Main application: Steel up to 900 N/mm²
• Stainless steel
• Steel up to 1,100 N/mm²
• Steel up to 1,300 N/mm²
• Titanium-alloyed materials

Variants (excerpt)
Item number / SAP item number / Net weight / Diameter / Length
108212G / 1000043200 / 62 g / 12.0 mm / 63.0 mm
108214G / 1000043221 / 70 g / 14.0 mm / 63.0 mm
108215G / 1000043222 / 72 g / 15.0 mm / 63.0 mm
108216G / 1000043223 / 74 g / 16.0 mm / 63.0 mm
108218G / 1000043224 / 80 g / 18.0 mm / 63.0 mm
108220G / 1000043225 / 88 g / 20.0 mm / 63.0 mm
108222G / 1000043226 / 94 g / 22.0 mm / 63.0 mm
108224G / 1000043227 / 102 g / 24.0 mm / 63.0 mm
108226G / 1000043228 / 118 g / 26.0 mm / 63.0 mm
108230G / 1000043229 / 142 g / 30.0 mm / 63.0 mm
108240G / 1000043230 / 206 g / 40.0 mm / 63.0 mm

Technical characteristics / specifications

• Material: HSS (High Speed Steel)
• Coating: Nanocomposite
• Shaft: Weldon shank (¾")
• Cutting depth: 30.0 mm
• Overall length (example variants): 63.0 mm
• Available diameters (excerpt): 12.0 mm • 14.0 mm • 15.0 mm • 16.0 mm • 18.0 mm • 20.0 mm • 22.0 mm • 24.0 mm • 26.0 mm • 30.0 mm • 40.0 mm
• Suitable materials: Steel up to 900 N/mm²; also suitable for stainless steel, steels up to 1,100 / 1,300 N/mm² and titanium-alloyed materials
• Example GTIN: 4007140400505
