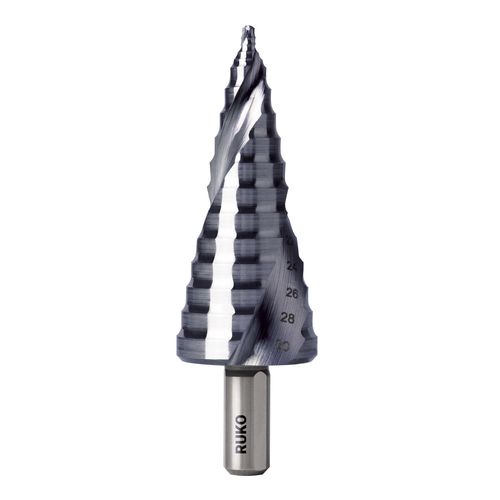

Step drill bit 10165 seriessolidfor plasticsfor cast iron
Add to favorites
Compare this product
Characteristics
- Type
- solid
- Drilled material
- for plastics, for cast iron, for stainless steel, for aluminum, for brass, for steel
- Drill bit material
- HSS
- Other characteristics
- step
- Diameter
Max.: 30 mm
(1.18 in)Min.: 5 mm
(0.2 in)- Length
Max.: 94.5 mm
(3.72 in)Min.: 70 mm
(2.76 in)
Description
Significantly longer tool life - up to 6x more holes possible
Time savings of up to 75% in tapping
Extremely fast and energy-saving drilling
Easy and smooth drilling process, without jamming in the material
Optimally suited for use in hand-held (cordless) power tools
Size no.
2
Net weight
0.200 kg
Shaft diameter
10.00 mm
Technical data
Number of cutting edges - 4
Number of steps - 12
Coating - RUnaTEC coating
Shaft - 3-way clamping surface
Cutting direction - right hand cutting
Tolerance - work's specification
Point angle - 118°
Step angle - 90°
