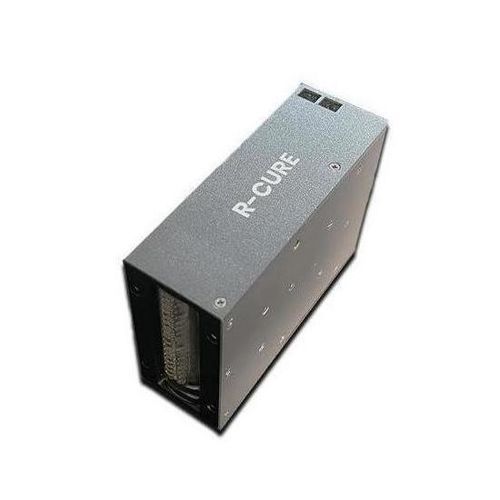

Lamp light source R-Cure

UVcompact

Overview
The R-CURE is a compact UV curing lamp engineered for rapid curing of TIJ (thermal inkjet) inks on a variety of substrates. It is designed for inline integration where space is limited and quick throughput is required.

Function
UV curing lamp for TIJ inks delivering consistent crosslinking and surface cure in a small form factor suitable for integration into industrial print workflows.

Features & Benefits

• Compact design for easy integration into print lines and restricted spaces
• Fast curing to increase line throughput and reduce handling time
• Improves printed output durability on multiple substrates
• Optimized specifically for TIJ (thermal inkjet) ink chemistries

Operational Notes

• Recommended operating height above substrate: 2 - 5 mm
• Typical effective irradiated area: 70 x 20 mm

Wavelength
395 nm

Technical specifications

• Model name: R-Cure
• Type: Compact UV curing lamp for TIJ inks
• Wavelength: 395 nm
• Recommended height (lamp to substrate): 2 - 5 mm
• Effective irradiated area: 70 x 20 mm
• Primary use: Rapid curing on various substrates to enhance print durability
