medium-voltage load-break switch medium-voltage load-break switch - XS


  • Electrical characteristics:


  • Other characteristics:

    outdoor, fused, molded case

  • VAC:

    Max.: 34,500 V

    Min.: 0 V

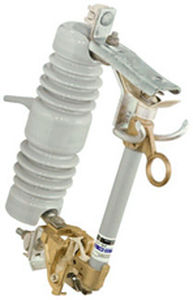

Type XS Fuse Cutout

S&C Type XS Fuse Cutouts, when fused with S&C Positrol® Fuse Links, provide full-fault-spectrum protection for overhead distribution systems rated 4.16 kV through 25 kV, whether applied on overhead transformers, capacitors, cables or lines.

This performance also extends to solidly grounded systems rated 26.4 kV through 34.5 kV, for protection of single-phase-to-neutral lines and transformers and grounded-wye-connected capacitor banks. Full-fault-spectrum protection means that Type XS Fuse Cutouts will interrupt all faults from the lowest current that will melt the fuse link to the maximum rated interrupting current under all realistic transient-recovery-voltage conditions.

S&Cs Type XS Fuse Cutouts are manufactured in accordance with a quality system certified to ISO9001:2000.
