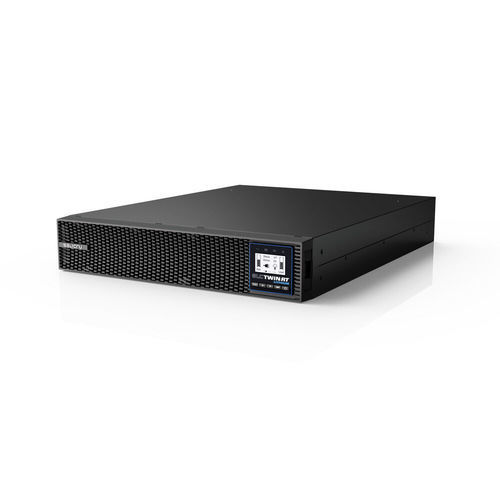

On-line UPS SLC-6000-TWIN RT3

double-conversionACLiFePO4

Overview
Uninterruptible Power Supply (UPS) 6000 VA on-line double conversion in convertible tower/rack format with LiFePO4 battery, designed to protect critical systems and data.

Main data

• Power (VA): 6000
• No. of sockets: 1+2
• Socket type: IEC C13
• Code: 6B4LC000001
• EAN: 8436584877073

Key features

• On-line double conversion topology
• Convertible tower/rack format with rotatable display
• Integrated LiFePO4 (lithium iron phosphate) battery technology
• Power factor = 1 for maximum usable power
• Eco-mode for improved efficiency
• Optional programmable sockets via PDU model
• Communication: USB-HID and RS-232; intelligent slot for SNMP/AS400/MODBUS; Winpower monitoring supported
• Cold start (battery start-up) and Emergency stop (EPO) supported
• Supports external battery modules (up to 8 EBMs)

Technical summary

• Input: Rated voltage 230 V; Voltage range 110-276 Vac (with linear load reduction from 110 ÷ 160 V); Rated frequency 50/60 Hz; Frequency range ±5Hz (50Hz) / ±6Hz (60Hz); THDi <5%
• Output: Power factor 1; Rated voltage selectable 220/230/240 V; Voltage accuracy in battery mode ±1%; THDv <1% (linear load) / <5% (non-linear load); Synchronised frequency 40 ÷ 70 Hz
• Performance: On-line efficiency 95%; Eco-mode efficiency 0.98
• Admissible overloads: Battery mode 105%~125% for 1 min, 125%~150% for 30 s, >150% for 500 ms; Bypass mode 125%~150% for 30 s, >150% for 500 ms; Line mode 105 ÷ 125% for 10 min / 125 ÷150% for 30 s / >150% for 500 ms
• Battery: Type LiFePO4; Charge type I/U (constant current/constant voltage); Recharge time 4.5 h to 90%; Max external EBMs: 8
• Charger: Temperature voltage compensation supported; Charging current 1-12 A
• Bypass: Rated voltage 230 V; Frequency range 45~55 Hz / 54~66 Hz
• Communications: USB-HID, RS-232, intelligent slot for SNMP/AS400/MODBUS; Winpower monitoring; Nimbus cloud via optional cards
• Other: Cold start, Emergency stop (EPO), Frequency converter (CVCF) function (with power reduction note)
• Operating environment: 0-50°C (power reduction above 40°C); Relative humidity 0-95%; Max operating altitude 3000 m (power reduction above 1000 m)
• Acoustic noise: <50 dB at 1 metre
• Standards: Safety EN IEC62040-1; EMC EN 62040-2 (C3); Operation VFI-SS-11 (EN 62040-3); Corporate: ISO 9001, ISO 14001, ISO 45001

Dimensions / Weight

• Depth (mm): 0
• Width (mm): 0
• Height (mm): 0
• Weight (kg): 0
