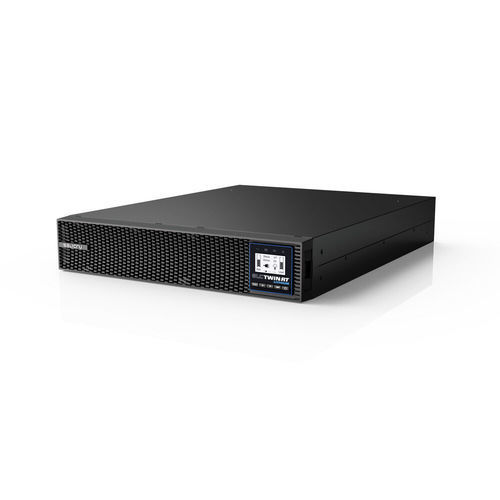

On-line UPS SLC-10000-TWIN RT3

double-conversionACLiFePO4

Product overview
Online double-conversion Uninterruptible Power Supply (UPS) 10000 VA in a convertible tower/rack format with LiFePO4 battery technology. Designed to protect critical systems and data in industrial and IT environments with a power factor of 1 and flexible monitoring options.

Key features

• Online double-conversion topology for continuous power conditioning.
• Convertible tower/rack format for installation flexibility.
• LiFePO4 (lithium iron phosphate) internal battery; up to 8 external battery modules (EBMs).
• Power factor = 1 to deliver full kW rating.
• Connectivity: USB-HID, RS-232 and intelligent slot for SNMP / AS400 / MODBUS (optional cards); Nimbus cloud / MQTT support.
• Optional programmable sockets (requires compatible PDU).
• Eco-mode and cold-start capability; Emergency Power Off (EPO) supported.

Input / Output

• Input rated voltage: 230 V; input voltage range: 110–276 Vac (linear load reduction from 110 ÷ 160 V).
• Input frequency: 50/60 Hz; frequency tolerance ±5 Hz (50 Hz) / ±6 Hz (60 Hz).
• Output: selectable rated voltage 220 / 230 / 240 V; power factor 1.
• Output voltage accuracy (battery mode): ±1%.
• Output waveform distortion (THDv): <1% (linear load) / <5% (non-linear load).

Performance & overload

• Input total harmonic distortion (THDi): <5%.
• Online efficiency: 95% (typical); Eco-mode efficiency: 0.98.
• Admissible overloads (battery mode): 105%–125% for 1 min; 125%–150% for 30 s; >150% for 500 ms.
• Admissible overloads (bypass mode): 125%–150% for 30 s; >150% for 500 ms.
• Admissible overloads (on-line/in-line mode): 105%–125% for 10 min; 125%–150% for 30 s; >150% for 500 ms.

Battery & charger

• Battery type: LiFePO4.
• Charge method: I/U (constant current / constant voltage).
• Recharge time: 4.5 h to 90%.
• Maximum external battery modules: 8.
• Charging current configurable: 1–12 A; temperature voltage compensation included.

Communication & software

• Ports: USB-HID and RS-232.
• Intelligent slot for SNMP / AS400 / MODBUS network cards (optional); supports Nimbus cloud IoT and MQTT.
• Monitoring software: Winpower (Windows / Mac / Linux).

Other functions & operating modes

• Cold-start (start from batteries) supported.
• Emergency stop (EPO) supported.
• Eco-mode for improved efficiency.
• Frequency converter (CVCF) available (note: reduces rated power by 40% when active).

Environmental & general

• Operating temperature: 0–50 °C (power derating applies; 50% reduction from 40 °C to 50 °C).
• Relative humidity: 0–95% non-condensing.
• Maximum operating altitude: 3000 m (power reduces by 1% per additional 100 m above 1000 m).
• Acoustic noise at 1 m: <50 dB.

Standards & certifications

• Safety: EN IEC 62040-1.
• EMC: EN 62040-2 (C3).
• Operation: VFI-SS-11 (EN 62040-3).
• Corporate: ISO 9001, ISO 14001, ISO 45001.

Notes / Footnotes
1) From 110 ÷ 160 V with linear load reduction up to a maximum of 50%.
2) Frequency converter (CVCF) implies 40% reduction in rated power.
3) 50% reduction in power from 40 °C to 50 °C.
4) Power reduction of 1% for every additional 100 m from 1000 m.a.s.l.

Technical specifications

• Model/series: SLC TWIN RT3 LION.
• Power: 10000 VA.
• Technology: Online double conversion.
• Format: Convertible tower/rack.
• Input rating: 230 V; range 110–276 Vac.
• Frequency: 50/60 Hz.
• THDi <5%; THDv <1% linear / <5% non-linear.
• Output power factor: 1; output voltage options: 220/230/240 V; voltage accuracy ±1% (battery).
• Battery: LiFePO4; recharge 4.5 h to 90%; up to 8 EBMs.
• Charging current: 1–12 A; temp. compensation: yes.
• Ports: USB-HID / RS-232; intelligent slot for SNMP/AS400/MODBUS; monitoring: Winpower.
• Cold start: yes; EPO: yes; Eco-mode: yes; CVCF: yes.
• Operating temp: 0–50 °C; humidity: 0–95%; max altitude: 3000 m; noise <50 dB.
• Standards: EN IEC 62040-1, EN 62040-2 (C3), VFI-SS-11 (EN 62040-3).
