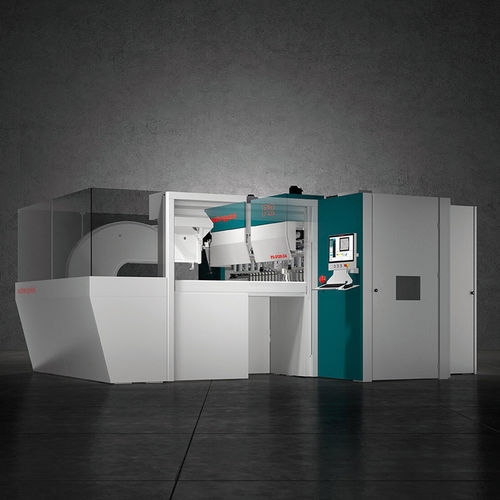

Hydraulic bender P2 series

sheet metalautomaticwith digital assistance

Overview
The P2 from Salvagnini combines productivity (automatic bending and handling cycles) and flexibility through universal in-cycle bending tools that adapt to panel geometry. Designed for kit, batch-one and mixed production, it provides automatic handling, tool adaptation and sensor-driven real-time compensation.

Key benefits

• Automatic bending and handling cycles for high throughput
• Universal in-cycle tools (upper/lower blade, counterblade, blankholder) that adapt without manual retooling
• Suitable for single-unit, kit and small-batch production
• MAC3.0 adaptive system measures and compensates material and environment variations in real time
• Low environmental impact: direct drive and sealed long-life oil circuit
• Industry 4.0 connectivity via LINKS, STREAM and OPS
• Modular options: P tool, CLA tools, CUT, DPM manipulator, P-Robot integration

How it works
The four universal tools process a wide range of materials and thicknesses (typ. 0.4–3.2 mm) during the cycle without downtime. The sheet is centered once against controlled mechanical stops; interpolated blade movements perform bends on all edges while minimizing cycle time and absorbing positioning errors into the first bend.

Adaptive system and intelligence

• MAC3.0: sensors, bending formula and algorithms detect material/mechanical variations and adjust bending parameters automatically
• Bending formula: computes forces and movements from deflection, temperature and thickness to ensure precision and repeatability
• LINKS / STREAM / OPS: software ecosystem for connectivity, programming and factory integration

Product versatility and optional devices

• Auxiliary tools for special geometries and automated loading/unloading (PIN2 door, PIN3 robot)
• P tool for narrow panels, tubular or radius bends and intrusive embossings
• CLA tools: modular auxiliary blades for partial folds and short bends
• CUT option: P tool + auxiliary blade for sequential automatic cutting of profiles
• DPM manipulator: suction-cup handling for narrow parts (min width 105 mm; with P tool panels down to 45 mm)
• P-Robot: integration with robot for autonomous kit and single-part production

Applications / Examples

• Refrigeration and appliance doors
• Elevator doors and galvanized steel doors
• Industrial panels for automotive, appliances, HVAC, signage and subcontracting

Technical specifications

• Model: P2
• Maximum incoming sheet length (mm): P2-1620 1995; P2-2120 2495; P2-2226 2815; P2-2520 2795; P2-3020 3175
• Maximum incoming sheet width (mm): P2-1620 1414; P2-2120 1600; P2-2226 1600; P2-2520 1600; P2-3020 1600
• Maximum rotatable diagonal (mm): P2-1620 2000; P2-2120 2500; P2-2226 2820; P2-2520 3200; P2-3020 3200
• Maximum bending force (kN): P2-1620 240; P2-2120 330; P2-2226 590; P2-2520 660; P2-3020 660
• Maximum clamping force (kN): P2-1620 380; P2-2120 530; P2-2226 635; P2-2520 1060; P2-3020 1060
• Maximum bending length (mm): P2-1620 400–1000; P2-2120 1000–1600; P2-2226 2180; P2-2520 2200; P2-3020 2500 / 3048
• Maximum bending height (mm): P2-1620 203; P2-2120 203; P2-2226 260; P2-2520 203; P2-3020 203
• Material thickness range: min 0.4 mm; max depends on material and angle (examples: steel UTS 410 N/mm² up to 3.2 mm at ±90°; stainless up to 2.5 mm at ±90°; aluminium up to 4.0 mm) — refer to technical table for detailed limits
• Average absorbed power (kW): 3.0–5.0 depending on model
• Noise level (dB): typically 68–69 dB (Machine Directive 2006/42/EC)
