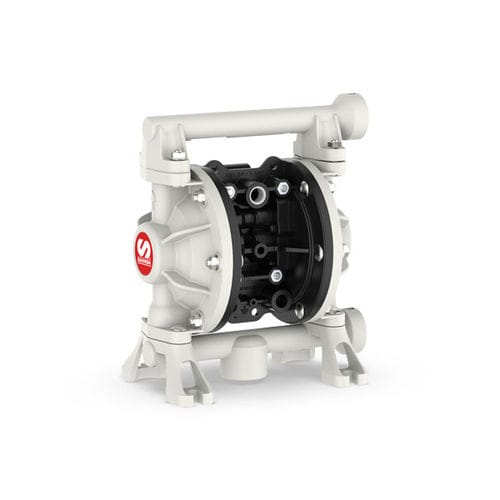

Double-diaphragm pump UP03 3/8"
waterfor chemicalsslurry

Add to favorites

Compare this product

Go to the SAMOA Industrial, S.A. website for more information

Characteristics

Fluid

water, for chemicals, slurry, for lubricants, fuel

Operation

pneumatic

Priming

self-priming, submersible

Technology

double-diaphragm

Mobility

stationary

Domain

for the chemical industry, industrial, for water treatment, for renewable energy, for the glass industry, for the petrochemical industry, for maritime applications, for the mining industry, for public works, for the metallurgical industry, for the paper industry, for the steel industry, for foundry applications, for the cosmetics industry, for the construction industry, for the printing industry, for the textile industry

Applications

transfer, process, for industrial applications, for printing machines, surface treatment, circulation, distribution, sewage, level control, refueling, powder coating, for hazardous locations, filling, cleaning, feed, recirculation, for lubrication systems, IBC, sanitation, flow control, suction, for harsh environments, lubrication, washing, chemical process

Material

PVDF

Fluid specification

for mineral oil, for aggressive media, for abrasive fluids, for paper stock, for solids-laden fluids, for low-viscosity fluids, for corrosive fluids, flavouring, coagulant, for toxic fluids, for firefighting foam, for powders, for brine, dye, cutting fluid, for AdBlue, flammable products, for refrigerant fluids, for used oil, pressure powered, for hazardous fluids, for engine oil, for fluids with lubricating properties

Protection level

chemical-resistant, abrasion-resistant, submersible, ATEX, robust

Other characteristics

compact, suction, self-adjusting, high-efficiency, horizontal mount, non-metal, small, slurp, high-performance, flange, heavy-duty, oil-free, small-size, skid-mounted, double-acting, adjustable-flow, low-vibration, seal-less, low-noise, OEM, high-reliability, mobile, for fluids, rugged, rugged

Flow

31 l/min
(8.18933 us gal/min)

Pressure

Max.: 7 bar
(101.526 psi)

Min.: 1.5 bar
(21.756 psi)

Head

Max.: 7 m
(22'11" )

Min.: 3 m
(9'10" )

Length

151 mm
(6 in)

Width

202 mm
(7.95 in)

Height

237 mm
(9.33 in)

Weight

2.1 kg
(4.63 lb)

Description

PIVOT Series 3/8” PVDF Air-operated double diaphragm (AODD) pumps are available in an extensive range of diaphragms, seats and balls. They offer a wide range of applications and fluid compatibility. These pumps are very suitable for aggressive chemicals with the presence of abrasives. UP03 3/8” Conductive Acetal AODD pumps makes the difference through: • - Exclusive Frictionless PIVOT-SHAFT Air Valve that results in: o - Bigger flow delivery. o - Smooth operation. o - Reduced flow pulsations. o - No pump vibration. o - Low-pressure start up. o - No icing. o - Easy and fast service. • - Corrosion-resistant air motor. o - Conductive polypropylene Air Chambers and Central Body. o - Non-metallic Air Valve Cartridge. o - Stainless Steel diaphragm-shaft. • - Lateral fluid inlet and outlet ports avoid leaking directly onto the pump. • - Universal standards: o - Matches relative dimensions of main competitive brands, allowing easy swap-over. o - Allow for easy swapping and upgrading of your old pumps. • - Optimized design for maximum performance. • - Premium materials for a long and reliable life ATEX certified versions available Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.
