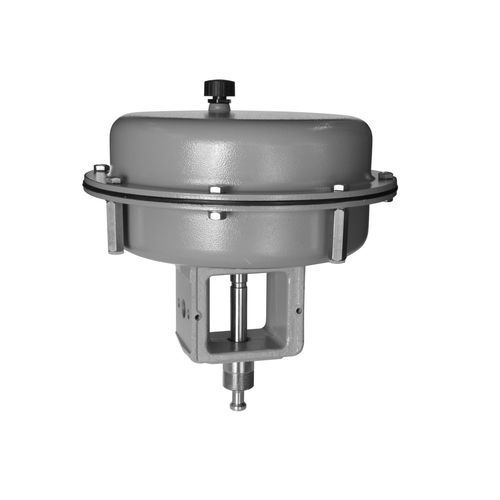

Pneumatic valve actuator 3277linearmembranesingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- linear
- Technology
- membrane
- Configuration
- single-acting
- Other characteristics
- with handwheel
- Actuator force
Max.: 37,500 N
Min.: 180 N
- Stroke
Max.: 30 mm
(1.2 in)Min.: 7.5 mm
(0.3 in)- Pressure
Max.: 6 bar
(87 psi)Min.: 0 bar
(0 psi)- Ambient temperature
Max.: 120 °C
(248 °F)Min.: -60 °C
(-76 °F)- Weight
Max.: 41 kg
(90.39 lb)Min.: 3 kg
(6.61 lb)
Description
• - Single-acting linear actuator with rolling diaphragm and internal springs
• - Diaphragm areas from 120 to 750 cm²
• - Direct attachment of accessories on additional yoke with concealed travel pick-off
• - Low overall height
• - Powerful thrust at high stroking speed
• - Low friction
• - Various bench ranges by varying the number of springs or their compression
• - No special tools required to change the bench range or reverse the direction of action (also version with handwheel)
Options
• - Version with side-mounted handwheel
• - Travel stop
