RF connector 100-CM
radio-frequencycoaxialfemale

RF connector - 100-CM - SAMTEC - radio-frequency / coaxial / female
RF connector - 100-CM - SAMTEC - radio-frequency / coaxial / female

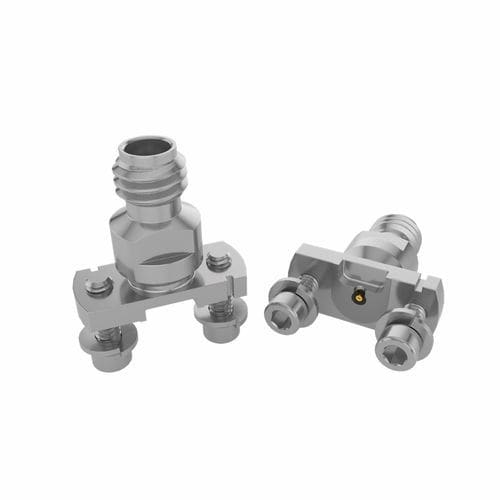

RF connector - 100-CM - SAMTEC - radio-frequency / coaxial / female - image - 2
Add to favorites
Compare this product

Characteristics

Type
RF, radio-frequency
Format
coaxial
Connection type
female, socket
Electrical characteristics
high-frequency
Domain
for electronics
Impedance

50 Ohm

Description

Overview
  • 50 Ohm, 1.00 mm precision jack designed for vertical, solderless compression mounting in high-frequency test and measurement applications.
  • Compact form factor to increase connector density on RF test fixtures and PCBs.
  • Field-replaceable, cost-effective assembly with threaded coupling options for enhanced mechanical stability.


Key Features
  • Performance to 120 GHz (with design variants extending toward D-band).
  • Vertical solderless compression mount for board or fixture installation.
  • Board thickness (vertical): .016" to .125" (standard) or .069" to .178" (with screws).
  • Compatible with microstrip and CPW transmission lines.
  • Alignment features (fiducials) on the PCB to eliminate visual misalignment and ensure peak RF performance.


Additional Characteristics
  • Air-dielectric design for low VSWR and low insertion loss.
  • Threaded coupling provides high mechanical stability and repeatability in test setups.
  • Recommended board-mount torque: 0.5 ~ 0.8 in-lbs.
  • Supports bandwidth expansion opportunities for emerging D-band applications.


Documentation & Resources
  • Product specifications, catalog pages, drawings and RF test reports are available from the product documentation resources on the product page.


Technical specifications
  • Series: 100-CM
  • Commercial designation: 50 Ohm 1.00 mm Jack, Vertical Solderless Compression Mount
  • Configured part example: 100-J-P-VP-ST-CMM-1
  • Impedance: 50 Ohm
  • Frequency performance: up to 120 GHz
  • Mount style: Vertical solderless compression mount
  • Board thickness (vertical): .016" to .125" (standard) or .069" to .178" (with screws)
  • Coupling: Threaded coupling
  • Design: Air dielectric for low VSWR and low insertion loss
  • Recommended torque (board mount): 0.5 - 0.8 in-lbs
  • Applications: High-performance RF test, microstrip/CPW transmission, millimeter-wave measurement
