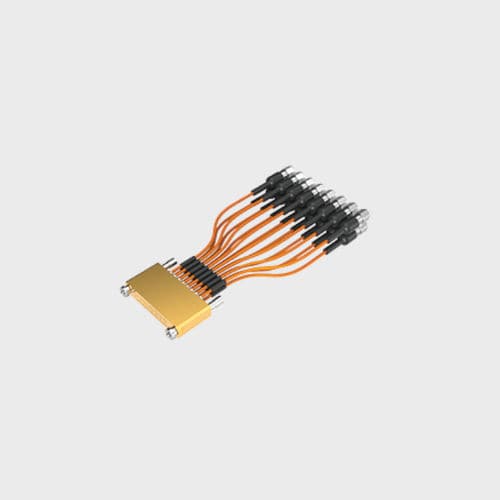

Data transmission cable assembly BE130

RFradio frequencyfor tests

Product Overview
BE130 is an in-development 130 GHz Bulls Eye® phase and amplitude stable test assembly designed for high-frequency test applications. It targets 1.0-mm-based test interfaces to provide low insertion loss and high-frequency performance at lower cost than 0.8 mm or 0.5 mm solutions.

Key Features

• Mode-free performance up to 130 GHz
• Optimized for 1.0‑mm-based test equipment—cost-effective alternative to 0.8 mm and 0.5 mm
• Minimal insertion loss and maximum achievable frequency for 1.0‑mm platforms
• Extended mode-free bandwidth supporting beyond 448 Gbit/s base rate
• Nitrowave® cable technology: maintains phase and amplitude stability under bending

Design and transmission options

• Single-row or dual-row configurations
• PCB transmission: microstrip / CPW or stripline
• Nominal impedance: 50 ohm

Additional information
Product is currently in development. Series name: BE130. Packaging and ordering options (tape & reel, parts per tube) will be provided on the product page.

Characteristics / Technical specifications

• Frequency range: mode-free performance up to 130 GHz
• Compatibility: 1.0‑mm-based test equipment
• Impedance: 50 ohm
• Row options: single-row or dual-row
• PCB transmission: microstrip / CPW or stripline
• Cable technology: Nitrowave® (phase and amplitude stable under bending)
• Bandwidth: extended mode-free bandwidth beyond 448 Gbit/s base rate
• Series / model family: BE130
