Coaxial cable assembly LL130

microwaveRFradio frequency

Overview

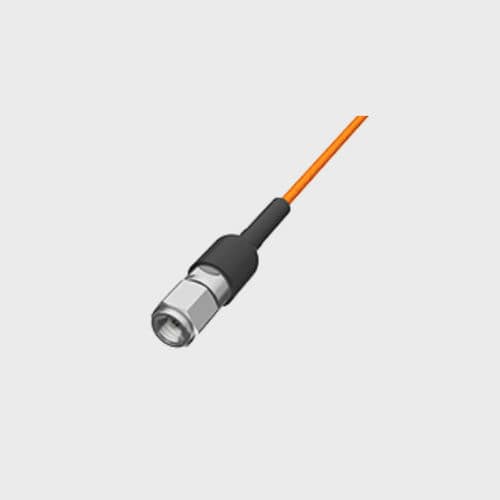

IN DEVELOPMENT microwave cable assembly using Samtec Nitrowave® cable technology. Designed for low-loss operation up to extremely high frequencies with improved stability provided by a Dynamic Performance Layer (DPL). Available with Samtec orange FEP jacket and an optimized coaxial structure for microwave applications.

Features

• Frequency range: DC to 130 GHz
• LL130 end options: 2 end options; 1.00 mm
• Nitrowave® optimized coaxial structure
• Dynamic Performance Layer (DPL) for improved stability and repeatability
• Improved process controls
• Low-loss construction with Samtec orange FEP jacket

Configured example
Configured part number example: LL130-10SP-10SP-0100-1-02

Packaging

• Tape and Reel
• Parts per Tube

Catalog / Literature (titles only)

• PDF Catalog Page - LL130
• Samtec Nitrowave® RF Orange Cable eBrochure
• Nitrowave® Cable Stability Data eBrochure

Technical specifications

• Model / Series: LL130
• Frequency range: DC to 130 GHz
• Connector end options: 1.00 mm (LL130 end option)
• Cable technology: Nitrowave® optimized coaxial structure
• Performance enhancement: Dynamic Performance Layer (DPL)
• Jacket: Samtec orange FEP
• Manufacturing: Improved process controls for stability and repeatability
• Example configured part number: LL130-10SP-10SP-0100-1-02
• Packaging options: Tape and Reel; Parts per Tube
