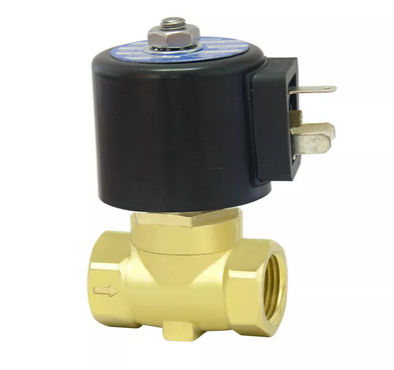

Direct-acting solenoid valve ZCM

2-waynormally closedfor gas

Body material: Forged Brass Pressure:0-5bar Orifice:3mm-100mm Pipe size:1/8"-2" Flange:DN40-100 Fluid Media: Coal Gas.Natural Gas. other normal gas Etc This sériés valve provide on-off control coal gas, natural gas, and other combustion fluid media, they also can control other low pressure fluids Characteristics • - 1 Spécial construction, low pressure • - 2 They are capable of operating at zéro pressure differential, and have large flow. • - 3 Use high quality seals, no leaking. • - 4 Best position is solenoid vertical and upright direction,Flow as the arrow. • - Explosion- proof coil and be fitted ( for orifice under 25MM only) • - Explosion-proof certification NC).:XK06-014-01861 Refer to standard: GB3836.1-2010. GB3836. 9-2006 • - Explosion-proof Symbol: Ex mb IIC T4 Gb
