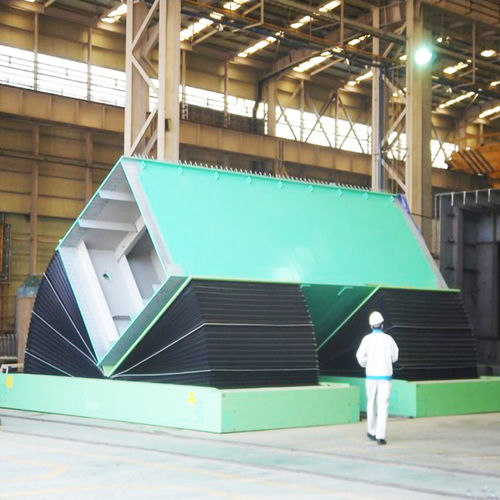

180-degree Flat Panel Mold Turning Machine is designed based on the concept of traditional mold turning machines. The rotation was carried by machine cogs, which are driven by hydraulic pressure. This machine occupies significantly less space as compared with those conventional ones.
Advantage:
1)Hydraulic cylinder driven
2)Make the mold & die rev rse at 90 degree
3)Fast and convenient overturning process
4)The tables can rest at 180 degree
5)Whole hydraulic system can be accommodated in pit
6) Easy operation
Parameter
- Capacity( KN) - Table size (mm) Table Height(mm) H1
PFM-5T - 50 1100*1250 350
PFM-10T - 100 1300*1400 450
PFM-15T - 150 1500*1650 450
PFM-20T - 200 1600*2000 530
PFM-30T - 300 - 1800*2200 530
PFM-50T - 500 - 2600*3000 630
