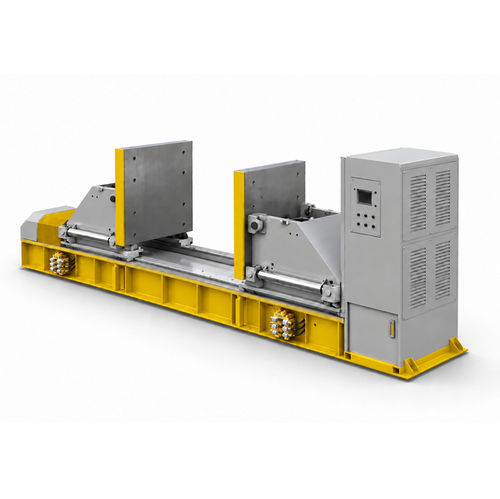

Horizontal die splitter HDS series

Product Overview
The SANTSAI HDS Series Horizontal Die & Mold Splitter is designed for safe mold opening, separation, tilting, inspection and functional testing. Four models cover molds from 4 to 25 tonnes. The HDS Series enables controlled horizontal separation of mold halves mounted on opposing platens; optional 0–90° platen tilting provides access to internal components. Integrated testing functions verify the mold hydraulic circuit, ejector system and cooling-water circuit before returning the mold to production.

Key Advantages

• Quick die-change system on both platens
• Optional 0–90° platen tilting
• Controlled mold opening and closing
• Mold hydraulic-circuit testing
• Mold ejector-function testing
• Mold cooling-water circuit testing
• Siemens PLC control system
• Safe handling of heavy molds and dies
• Suitable for mold inspection, repair and maintenance

How It Works

• Place the closed mold on the lower platen.
• Position and clamp the mold securely.
• Connect the upper mold half to the upper platen.
• The hydraulic system lifts the upper mold half vertically.
• The mold opens to the preset inspection height.
• Perform inspection, cleaning, repair or component replacement.
• Lower the upper platen under controlled conditions.
• Align and close the upper and lower mold halves safely.

Applications

• Injection molds
• Die-casting molds
• Stamping dies
• Automotive molds
• Household appliance molds
• Mold manufacturing and maintenance workshops
• Tool rooms and testing centers

Technical Specifications (table)

• Models: HDS-05T-1108 / HDS-10T-1412 / HDS-18T-1520 / HDS-25T-2120
• Maximum mold weight (t): 4 / 8 / 18 / 25
• Clamping force (t): 7 / 7 / 10 / 10
• Opening force (t): 10 / 10 / 60 / 80
• Platen dimensions (mm): 1100×800 / 1400×1200 / 1500×2000 / 2100×2000
• Platen tilting angle: 0–90° (optional)
• Maximum opening stroke (mm): 1500 / 1500 / 2000 / 3000
• Minimum opening stroke (mm): 200 / 200 / 400 / 500
• Mold opening/closing speed (mm/s): 0–40 (adjustable)
• Tilting speed (°/s): 8
• Maximum tilting capacity (t): 2 / 4 / 9 / 13
• Machine footprint (L×W×H mm): 4600×1100×1750 / 5010×1400×1750 / 5960×1800×2009 / 7800×2100×2700

Features / Technical specifications

• Series: HDS Series
• Control: Siemens PLC control system
• Integrated testing: mold hydraulic circuit, ejector function, cooling-water circuit
• Intended uses: mold assembly, maintenance, inspection, repair and functional testing
