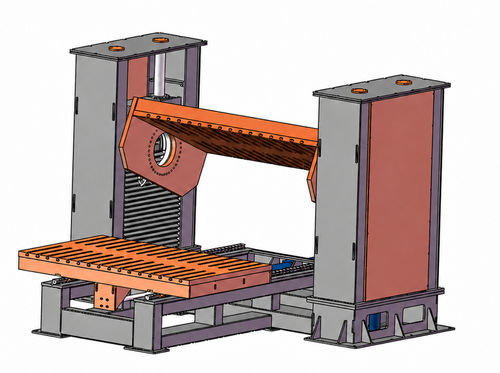

Die splitter VDS series

Overview
The SANTSAI VDS Series Vertical Die & Mold Splitter is designed for the safe and efficient separation, inspection and maintenance of injection molds, die-casting molds and stamping dies. Available in 3, 6, 10 and 15-t capacities, the machine features a heavy-duty steel frame, large machined platens, a controlled hydraulic vertical lifting/lowering system and configurable platen sizes and opening heights for oversized molds.

Key Advantages

• Vertical separation of upper and lower die or mold halves
• Maximum mold capacities from 3 to 15 t (standard models shown)
• Heavy-duty steel frame for stable operation
• Large machined platens to accommodate oversized molds
• Controlled hydraulic lifting and lowering for safe handling
• Convenient access for mold inspection and maintenance
• Reduced dependence on overhead cranes
• Safer mold opening and closing procedures
• Suitable for injection molds, die-casting molds and stamping dies
• Customized platen size and opening stroke available on request
• Optional mold clamping and safety systems
• Simple operation via industrial control panel

How It Works

• The closed die or mold is positioned on the lower platen.
• The mold is aligned and securely clamped.
• The upper mold half is attached to the upper platen.
• The hydraulic system lifts the upper mold half vertically.
• The mold opens to the preset inspection height.
• Operators perform inspection, cleaning, repair or component replacement.
• The upper platen is lowered under controlled conditions.
• The upper and lower mold halves are aligned and closed safely.

Applications

• Injection molds
• Die-casting molds
• Automotive molds (interior & exterior)
• Stamping dies
• Progressive dies
• Transfer dies
• Compression molds
• Large plastic-part molds
• Household appliance molds
• Mold assembly and maintenance workshops
• Tool rooms and mold manufacturing facilities

Technical Specifications
Model | Unit | VDS-03T-1510 | VDS-06T-2013 | VDS-10T-2615 | VDS-15T-3217
Platen Size | mm | 1,500 × 1,000 | 2,000 × 1,300 | 2,600 × 1,500 | 3,200 × 1,700
Maximum Die/Mold Weight | t | 3 | 6 | 10 | 15
Minimum Daylight | mm | 200 | 300 | 400 | 500
Maximum Daylight | mm | 800 | 1,100 | 1,300 | 1,500
Maximum Load on Upper Platen | t | 1.5 | 3 | 5 | 7
Machine Weight | t | 7 | 10 | 12 | 15

Note: Specifications are subject to technical improvement without prior notice. Customized platen dimensions, load capacities and opening heights are available upon request.
