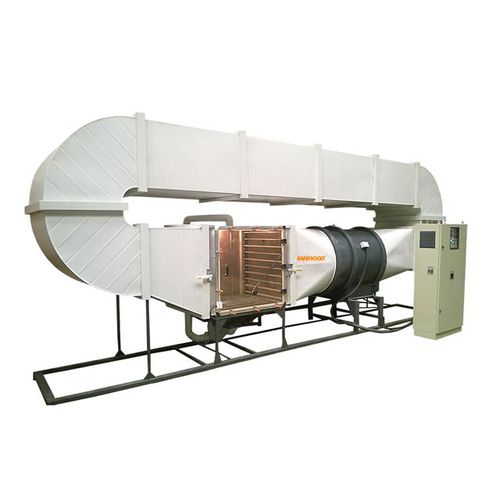

Dust chamber SM-500climaticsand corrosionsand
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Test type
- sand corrosion, dust, sand
- Product applications
- for automobiles
- Application domain
- for quality control
- Configuration
- floor-standing, on casters
- Light source
- LED
- Number of doors
- 1-door
- Chamber material
- stainless steel
- Options and accessories
- touchscreen-controlled, PLC-controlled
- Other characteristics
- stainless steel
- Capacity
500 l
(132.09 gal)- Interior length
800 mm
(31.5 in)- Interior height
800 mm
(31.5 in)- Interior depth
800 mm
(31.5 in)- External length
3,600 mm, 5,000 mm
(141.7 in, 196.9 in)- External height
2,100 mm, 2,500 mm
(82.68 in, 98.43 in)- External depth
800 mm, 1,600 mm
(31.5 in, 62.99 in)
Description
Product Usage:
The sand dust test box is suitable for dustproof and dustproof tests on various auto parts. The test parts include lamp, instrument, electric dust cover, steering system, door lock and so on.
Features:
1.The liner is made of SUS304 stainless steel.
2.The outer casing is galvanized steel.
3.Test box door with observation window, with wiper
4.The bottom of the test chamber is in the shape of a funnel to facilitate the collection of talc powder for the experiment.
5.Using a circulating fan and an automatic jar to blow the talc into the upper part of the working chamber through a 75 micron square hole mesh, and promote the test space to form a high density dust mist, and test the sample.
6.Use the TAIAN time controller (SG2-10HR-A) which is made in Taiwan to control the dust blowing, lighting and vibration cycle.
