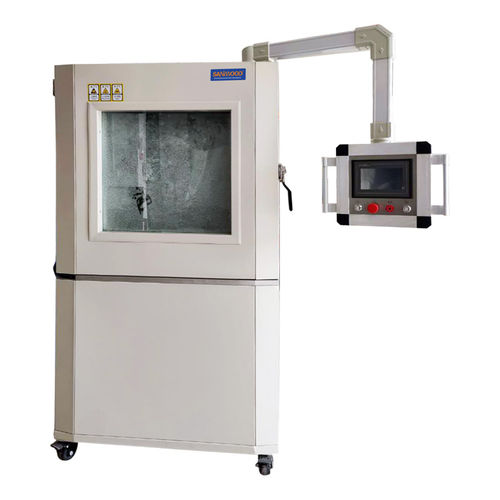

Climatic test chamber SM-SC-2000

temperaturedustsand corrosion

Dust Chamber use： Sand and Dust test chamber is suitable for all kinds of auto parts to do dust and dust test,Test parts include a light.Meter.Electric dust jacket.Steering system.Door lock, etc. Sand and Dust Test Chamber Meet the standard： Dust Test Chamber has a wide range of temperature and humidity control, which can meet the national standard GB4208GB/T2423.37-198 《Basic environmental testing procedures for electric and electronic products》 Dust chamber Sand and Dust Test Chamber Test principle: Sand and Dust test chamber door attached to the window, the door to the lower part of the electrical control area,Simulated sand dust of talc in the lower hopper of the test chamber. Use the of circulating fan and automatic jar will be blown into the upper network studio talcum powder through a 75 micron square hole,The test space form high density dust shape, test specimen. Sand and Dust Test Chamber Structure: 1. LCD Touch Screen Programmable Sand and Dust Ingress Testing MachineInner material: Stainless steel (SUS #304) 2. LCD Touch Screen Programmable Dust Proof Test Equipment Outer material: Powder painting steel plate 3. Dust Test Equipment use imported touch screen programmable controller, can control dust blowing motor, dust vibration and test time. 4. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust brush to ensure easy observation of inner chamber. 5. Sand and Dust Chamber With strong dust blowing device and vibrator to ensure informity of each blowing. 6. Circulating air supplying device: Frequency converter and high pressure motor to ensure the air volume more precision.
