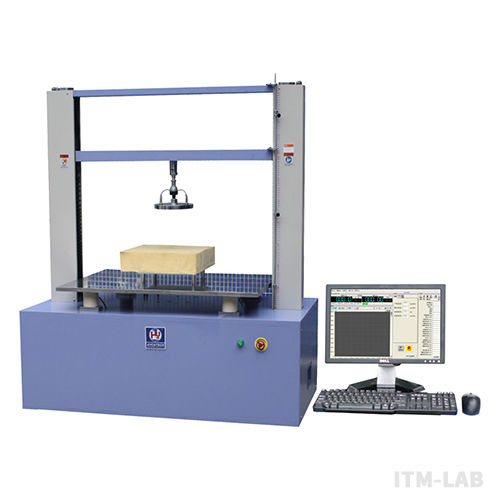

Compression test machine SM-8000P
fatiguehardnesscomputer-controlled

compression test machine
compression test machine
Add to favorites
Compare this product


Characteristics

Test type
compression, fatigue, hardness
Operating mode
computer-controlled
Test material
for foam, for seats
Technology
servomotor

Description

Application This tester is suitable for the compression testing, the hardness testing and the fatigue testing of polyfoam,sponge of seats, because of using the programmable software for the control, and the servo motor for the driving, the tester can satisfy the A,B,C three type of testing methods stipulated in the GB/T10807-2006. GB/T10807-2006 ISO 2439: 1997,ASTMD3674,JISK6400-2004 Specification Model - RS-8000P Capacity (optional) - 4KN ( 4x1000N or specified by user ) Unit (switchable) - N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2 Load resolution - 1/500,000 Load accuracy - ±0.5% Stroke (exclude the grips) - 400mm or specified by user Effective width - 1000mm Test speed - 0.001~600mm/min Speed accuracy - ±0.5% Stroke resolution - 0.001mm motor - AC servo Motor Software - Special control software Load range - Rangless transmission rod - High accuracy ball screw Main unit dimension (WxDxH) - 1400x750x1650mm Main unit weight - 550 Kg Power supply - AC220V 10A or specified by user To use four high precise LOAD CELL for the measurement, can guarantee the precision To use special sense for the auto-zero position adjusting, can guarantee the repeatability 1000x750mm super big testing space, can satisfy the finished seats of car to be tested Attach with several fixtures for the different polyfoam, can satisfy all kinds of testing requirement Special testing software, can satisfy the testing requirement of CI/ the loss rate of lag, after set to zero, can finish the whole testing procedure automatically
