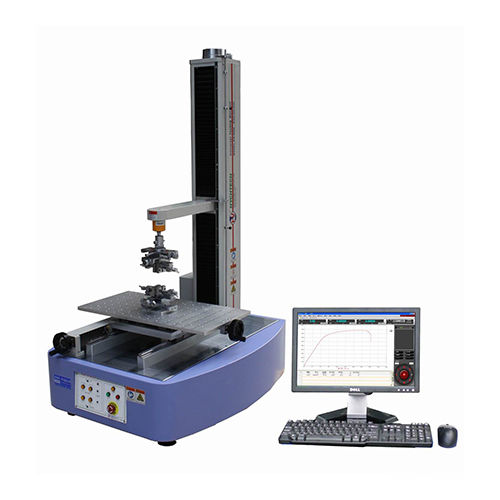

Compression test machine SM-8010XY
tensileforceshearing

compression test machine
compression test machine
Add to favorites
Compare this product


Characteristics

Test type
compression, tensile, force, shearing, peel
Operating mode
PC-controllable
Test material
for plastics, for foam, for packaging, for cables, for paper

Description

This UTM are suitable for the testing of tensile,compression,shearing force,adhesion,peeling force,tear strength etc for semiproduct&finished product in the field of rubber,plastic,metal,nylon,fabric,paper,aviation,packing,architecture,petrochemistry,electric appliance,automobile,etc,which are the basic facilities for input quality control(I.Q.C),Quality Control(Q.C),Physical inspection,Mechanics research and material development. Standard GB/T228-2002,GB/T14452-93,ASTM D638-03,ASTM D790-07,GB/T292,ASTM D3330-04,ASTM D1894-06. Specification Capacity(optional) - 100N,200N,500N,1KN,2KN Unit(switchable) - N,KN,Kgf,Lbf Dynamic system - PanasonicRAC servo motor+ShimpoRgear reducer+MitsubishiRsynchronous belt+TBIRBall screw Load cell accuracy - ±0.01%F.S Load resolution - 1/500,000 Level of the accuracy - ±0.5% Measurement accuracy - ±0.5%F.S Effective range - 0.2%~100%F.S Stroke resolution - 0.0001mm Stroke measurement accuracy - Less than ±0.5% of the display Deformation resolution - 0.0001mm Deromation measurement accuracy - Less than±0.5% of the display Stroke (exclude the grips) - 1000mm Effective width - 400mm Test speed - 0.001-500mm/min Speed accuracy - ±0.5% Deformation measurement (purchasing additional) - Large deformation:10-1000mm, Electronic extensometer:gauge length-25mm,deformation 25mm Fixtrue - Tensile,compression,peeing force X-Y axis mobile test platform - X axis:0-350mm Limiting Protection - Mechanical limit Overload Protection - Over maximum load 10%,machine protection Main unit dimension(WxDxH) - W800*D1080*H1720mm Main unit weight - 175kg Power - AC220V 5A Noise - 5mm/min 55db(A)/500mm/min 68db(A)
