Glass edging machine 10Edge

electronic

Overview

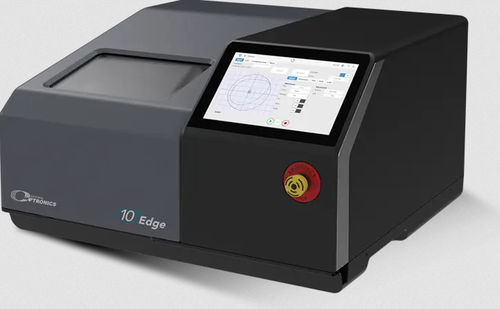

The 10Edge is a tabletop 3D lens edger that performs drilling and grooving in a single integrated process. Its cutting system supports roughing, finishing, polishing, grooving and safety beveling. The unit features an intuitive color touchscreen and fast Ethernet connectivity to simplify operation and network integration.

Designed for optical labs and dispensing shops of all sizes, the 10Edge offers consistent processing and is supported by a dedicated service organization.

Highlighted Features and Performance Benefits
Flexibility to Process Most Bevel Types

• Optional multi-fluted cutter enables a wider range of bevel profiles for specialty frame designs and extended service offerings.

Variable Blocking Options

• Compatible with all major blocking styles to integrate with existing lab workflows without compromise.

Intuitive Touchscreen Interface

• Color touchscreen simplifies setup and operation; operators enter required data and begin processing quickly.

Space-Saving Tabletop Design

• Outer design allows the blocker to rest securely on the edger to save bench space and improve organization.

Working Range

• Maximum lens blank size: 90 mm (effective diameter)
• Minimum finishing B size with standard half-eye clamping assembly: 18 mm rimless; 20 mm bevel

Communications

• OMA / VCA compatible
• Stand-alone operation

Additional Features

• Includes vacuum system and accessory kit
• One-year parts and labor warranty

Facilities

• Power: 115 VAC, 60 Hz, 1500 W (dedicated circuit)
• Height: 14″ (35.6 cm)
• Depth: 26.8″ (68 cm)
• Width: 25″ (63.5 cm)
• Weight: 145 lbs (65.77 kg)

Options

• Multi-fluted cutter
• Specialty cutters
• Barcode reader
• PCD cutter

Document Downloads

• 10Edge Brochure (PDF)
• National Optronics Consumable Catalog (PDF)

Specifications / Technical Data

• Model / Commercial name: 10Edge
• Type: 3D edging and finishing lens edger (tabletop)
• Processes: drilling, grooving, roughing, finishing, polishing, safety beveling
• Maximum lens blank size: 90 mm effective diameter
• Minimum finishing B size (standard half-eye clamping): 18 mm rimless; 20 mm bevel
• Power: 115 VAC, 60 Hz, 1500 W (dedicated circuit)
• Height: 14" (35.6 cm)
• Depth: 26.8" (68 cm)
• Width: 25" (63.5 cm)
• Weight: 145 lbs (65.77 kg)
• Interface: intuitive color touchscreen
• Connectivity: fast Ethernet; OMA / VCA compatible; stand-alone operation
• Included: vacuum system and accessory kit
• Warranty: one-year parts and labor
• Options: multi-fluted cutter, specialty cutters, barcode reader, PCD cutter
• Environmental: dry edging (waterless) to reduce water use and simplify debris clean-up
• Service: remote diagnostics for technical support and software updates
