Automatic 3D table-top tracer 10Trace

for ophthalmic lens production

Overview

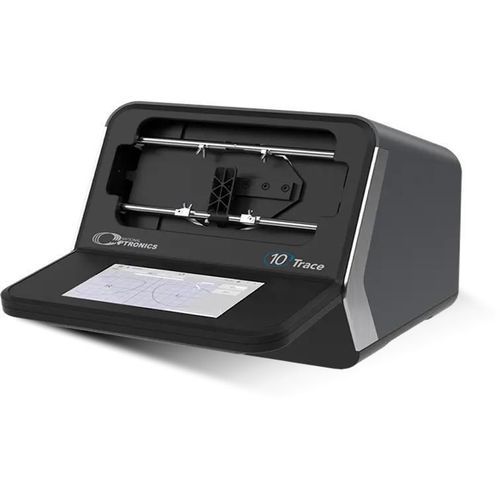

The 10Trace is an automatic 3D frame and lens tracer designed for a wide variety of frame styles and curves, including wraps, small frames and rimless shapes. Its industrial design and upright loading orientation preserve frame and lens geometry while supporting reliable shop and remote-lab workflows.

Highlighted Features and Performance Benefits

• Precise Image
  • 1:1, distortion-free imaging that displays frames at actual eye size for accurate tracing.
• Versatile Performance for Any Tracing Environment
  • Handles a broad range of frames and curves (wraps, small frames, full 3D tracing). Dual-eye tracing and DBL measurement are driven by a 2,000-point resolution encoder for high accuracy.
• Upright Loading Orientation
  • Vertical loading helps maintain lens shape and reduces distortion while limiting debris buildup for long-term reliability.
• Remote Frame Tracing Feature
  • Captures exact frame geometry and transmits trace data directly to a remote lens lab—no need to ship frames, enabling mobile or satellite operations.
• Cloud-Based Software
  • Secure, real-time access to trace data from any location with internet connectivity.
• Remote Diagnostics
  • Integrated remote diagnostics provide fast technical support and streamlined software updates.
• Assembled in the USA
  • Machines are assembled domestically to ensure consistent build standards and serviceability.

Working Range

• 18 mm – 75 mm tracing

Communications

• OMA / VCA compatible
• Stand-alone operation

Additional Features

• Stores over 100 jobs
• Includes accessory kit with calibration device and pattern/lens holder
• One-year parts and labor warranty

Facilities (Dimensions & Power)

• Power: 100-240 VAC, 50-60 Hz
• Height: 10.6" (26.9 cm)
• Depth: 16.5" (41.9 cm)
• Width: 11.1" (28.2 cm)
• Weight: 19 lbs (8.62 kg)

Options

• Barcode reader

Document Downloads

• 10Trace Brochure (product brochure available in PDF)

Technical Specifications

• Model: 10Trace
• Product type: Automatic 3D frame and lens tracer
• Imaging: 1:1 distortion-free image at actual eye size
• Trace capability: wraps, small frames, full 3D tracing; rimless shape modifier and editing tools
• Dual-eye tracing and DBL measurement: 2,000-point resolution encoder
• Working range: 18 mm – 75 mm
• Communications: OMA / VCA compatible; stand-alone
• Storage: stores over 100 jobs
• Accessories included: calibration device, pattern/lens holder (accessory kit)
• Warranty: one-year parts and labor
• Power requirements: 100-240 VAC, 50-60 Hz
• Dimensions: H 10.6" (26.9 cm) × D 16.5" (41.9 cm) × W 11.1" (28.2 cm)
• Weight: 19 lbs (8.62 kg)
• Key features: upright loading orientation, remote frame tracing to send data to remote lens labs, cloud-based software for secure real-time access, remote diagnostics
• Options: barcode reader
• Manufacturing: assembled in the USA
