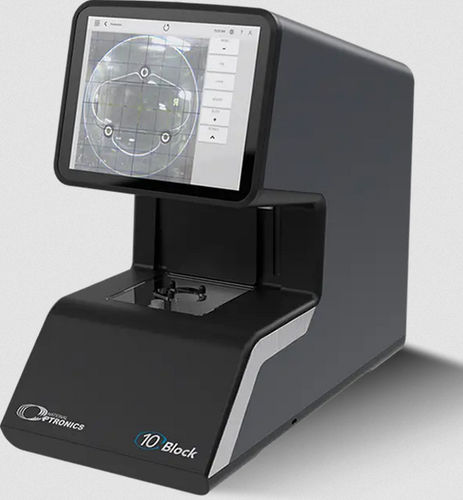

Automatic ophthalmic lens blocker 10Block

manual

Product overview
The 10Block semi-automatic lens blocker positions ophthalmic lenses for blocking prior to edging. It combines high-resolution digital imaging with a compact footprint and a touchscreen interface to simplify alignment and reduce handling time.

Highlighted features and performance benefits
Precision imaging

• High-resolution digital camera captures lens watermarks and blocking marks for accurate alignment and repeatable placement.

Ergonomic design

• Large heads-up display and touchscreen keep the operator in a comfortable posture. Foot switch enables hands-free blocking operations.

Multiple block configurations

• Supports metal and plastic block types. Placement modes include geometric center, optical center and manual positioning.

Parallax and distortion control

• Front-surface projection minimizes refraction errors. Front-surface-down blocking reduces the risk of lens damage and imbalances during placement.

Ethernet transmission
Optional fast Ethernet port for network communication and efficient software updates.

Remote diagnostics
Built-in remote diagnostics allow rapid technical assistance and remote software maintenance.

Assembled in the USA
Machines are assembled in the USA for local manufacturing traceability.

Communications

• OMA / VCA compatible
• Standalone operation

Facilities

• Power: 100-240 VAC, 50-60 Hz
• Height: 15.7 in (40 cm)
• Depth: 18.2 in (46.2 cm)
• Width: 8.4 in (21.3 cm)
• Weight: 18 lbs (8.16 kg)

Additional features

• Store up to 200 jobs
• Split-screen view for simultaneous lens layout and job data
• One-year parts and labor warranty

Options

• Barcode scanner
• Multiple block configuration kits

Technical specifications

• Model name: 10Block
• Type: Semi-automatic lens blocker
• Imaging: High-resolution digital imaging for watermark and blocking position detection
• User interface: Intuitive touchscreen, large heads-up display
• Operation: Foot switch for hands-free blocking
• Blocking options: Metal or plastic block designs; geometric center, optical center or manual placement
• Parallax control: Projects front surface of lens; front-surface-down blocking to prevent damage and placement errors
• Communications: OMA / VCA compatible; standalone operation; optional fast Ethernet transmission
• Remote support: Remote diagnostics and software update capability
• Storage: Stores up to 200 jobs
• Dimensions: Height 15.7 in (40 cm); Depth 18.2 in (46.2 cm); Width 8.4 in (21.3 cm)
• Power: 100-240 VAC, 50-60 Hz
• Weight: 18 lbs (8.16 kg)
• Warranty: One-year parts and labor
