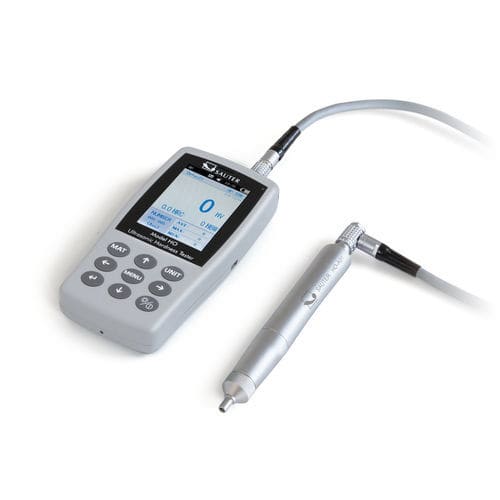

Rockwell hardness tester HO 10K

BrinellVickersmanual

Premium UCI hardness testing device for Rockwell, Brinell and Vickers • Application: This ultrasound hardness testing device is ideally suited for mobile hardness testing, where the main emphasis is on obtaining rapid and precise results • Principle: The SAUTER HO measures by using a vibrating rod which vibrates at ultrasonic frequency and is pressed onto the sample at a defined test force. At the lower end there is a Vickers indenter. Its resonant frequency increases, as soon as an indentation is created when it comes into contact with the sample. Through appropriate adjustment of the device, the resulting change in resonant frequency is matched with the corresponding Vickers hardness • Examples: The SAUTER HO ultrasound hardness testing system is primarily used for measuring small forgings, castings, welding points, punched parts, casting tools, ball bearings and the flanks of gear wheels as well as for measuring the influence of warmth or heat • Advantages compared with Rockwell and Brinell: Almost non-destructive testing by smaller test force and thus only microscopic indentation craters • Advantages compared with Vickers: Demanding optical measuring is not required. You can therefore carry out measurements directly on-site, for example, on a permanently installed workpiece • Advantages compared with Leeb: The high requirements concerning the proper weight of the test object can be widely omitted • Standards: The device meets following technical standards: DIN 50159-1; ASTM-A1038-2005; JB/T9377-2013 • Measurement data memory saves up to 1000 measurement groups each with 20 individual values
