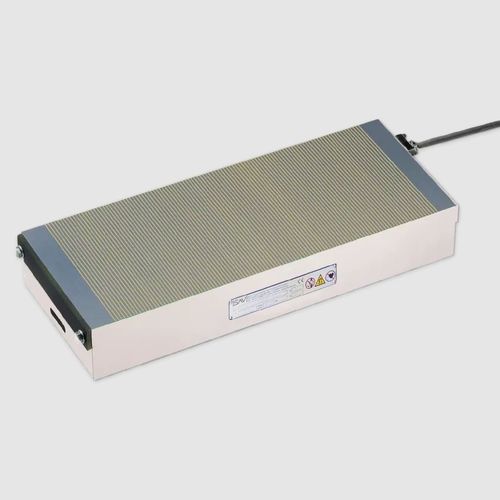

Electro-permanent magnetic chuck 243.40

rectangularfor grinding

Electro magnetic chucks with continuous fine transverse pole pitch P = 4 mm For chucking thin, plate-shape workpieces with shape and position tolerances of 0.01 to 0.02 mm. For main workpiece axis perpendicular to the pole pitch For thin workpieces up to: min. thickness = 2 mm For flat workpieces: min. length = 40 mm Pole plate with exceptionally narrow, uniform transverse pole pitch, 3 mm steel and 1 mm brass Glued discs and additionally screwed with tie rods in the length Pole plate screw joint in the narrow grid 8 mm Wearing capacity of the pole plate Low magnetic field magnitude with 4 mm Clamping slot on both front faces From lengths greater than 1000 mm with through holes for fixing as per the agreement Robust and water-tight Protection type IP 65 100% ED Suitable for connection with control device SAV 876.10 Electro magnetic chuck SAV 243.40 - 1200 x 500 - 110 V Designation SAV no. - A x B - rated voltage 100 N/cm2,controllable with control unit using holding force coding switch Rated voltage, recommended 24 V DC up to and including 118 W 110 V DC for all other sizes
