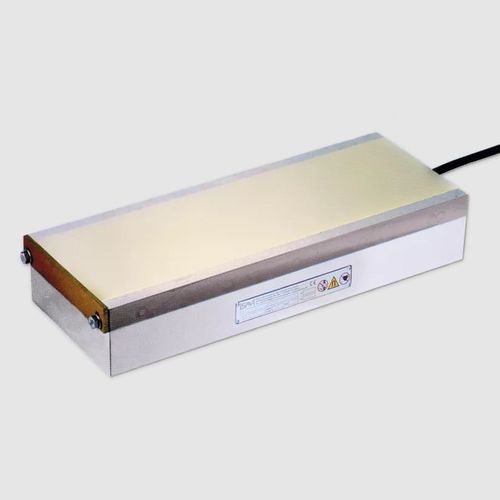

Electro-permanent magnetic chuck 243.41

rectangularfor grinding

Electro magnetic chucks with continuous fine longitudinal pole pitch P = 4 mm Electromagnet systems with very narrow pole pitch. Especially suitable for thin parts. Main workpiece axis at right angle to the magnet length. For chucking thin, plate-shape workpieces with shape and position tolerances of 0.01 to 0.02 mm. For main workpiece axis perpendicular to the pole pitch For thin workpieces up to: min. thickness = 2 mm For flat workpieces: min. width = 40 mm Pole plate with particularly narrow, continuous longitudinal pole pitch, 3 mm steel and 1 mm brass Pole divisions bonded and additionally bolted together solidly with tie rods Pole plates bolted in a narrow grid 8 mm wear layer on the pole plate Low magnetic field height of 4 mm Chucking slots on both face sides Length over 1000 mm with through holes for fastening upon agreement Robust and water-tight Protection rating IP 65 100 % duty cycle Suitable for connecting to the SAV 876.10 control unit Electro magnetic chuck SAV 243.41 - 1200 x 500 - 110 V Designation SAV no. - A x B - rated voltage 100 N/cm2, controllable with control unit using holding force coding switch Rated voltage, recommended 24 V DC up to and including 106 W 110 V DC for all other sizes
