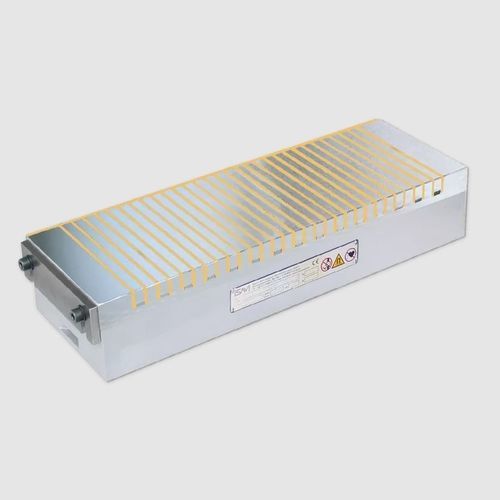

Electro-permanent magnetic chuck 243.42

rectangularfor grinding

Electro magnetic chucks with continuous transverse pole pitch P = 13 mm, 18 mm and 25 mm The magnetic chuck features a high magnetic power, sturdy design and a long service life. The pole pitch forms “true” N and S poles. For universal chucking of workpieces with shape and position tolerances of 0.01 to 0.02 mm. For main workpiece axis perpendicular to the pole pitch For workpieces up to min. thickness x: 4.5 mm with P = 13 mm 6.0 mm with P = 18 mm 8.5 mm with P = 25 mm For flat workpieces min. a: 25 mm x 25 mm with P = 13 mm 32 mm x 32 mm with P = 18 mm 45 mm x 45 mm with P = 25 mm Solid pole plate with 13 mm, 18 mm or 25 mm transverse pole pitch “True” N/S pole spacing With water cooling for increased accuracy on request With compressed air holes for easier removal of large parts (adhesion) for P = 18 mm or 25 mm on request Pole plates bolted in a narrow grid 8 mm wear layer on the pole plate Chucking slots on both face sides Length over 1000 mm with through holes for fastening upon agreement Robust and water-tight Protection rating IP 65 100 % duty cycle Suitable for connecting to the SAV 876.10 control unit Electro magnetic chuck SAV 243.42 - 2000 x 800 - 25 - 110 V Designation SAV no. - A x B x P - rated voltage Nominal adhesion force: 90 N/sqcm, for P = 13 mm pole pitch 110 N/sqcm, for P = 18 mm pole pitch 115 N/sqcm, for P = 25 mm pole pitch Can be controlled by the control device using the adhesion force coding switch Rated voltage, recommended: 24 V DC to 64 W 110 V DC for all sizes
