Pallet automatic storage system MAGMATIC®

for warehousecompact

Overview

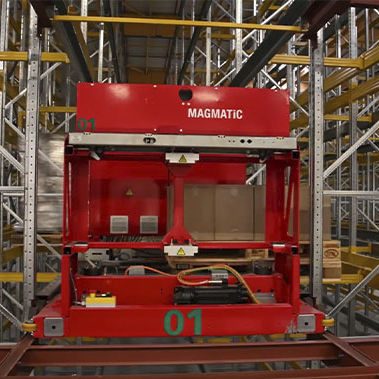

The MAGMATIC pallet storage solution by SAVOYE is a bidirectional shuttle system for compact, flexible pallet storage. It is designed to operate in confined aisles and to be adapted to new or existing buildings. Vehicles can serve storage lanes and exit to peripheral workstations or picking stations, supporting production and logistics flows.

Key features

• Bidirectional shuttle vehicles for high-density pallet storage
• Single- or double-depth lane configurations
• Adaptable to various building layouts, including retrofit installations
• Vehicles able to exit the storage area to serve workstations or picking stations
• Lightweight vehicle design for reduced energy consumption
• Compatible with controlled-temperature environments (e.g. down to -28°C)
• Scalable architecture to match expected throughput

Typical applications

• Refrigerated and frozen warehouses requiring compact high-density storage
• Production buffer warehouses and logistics buffers at line feed points
• Sites with footprint constraints where retrofit or space optimization is required

Integration & operation notes

• Requires conveyors or transfer systems to interface in/out operations and peripheral workstations
• Designed for energy efficiency through lightweight vehicle construction
• Can integrate with goods-to-person picking systems or WMS/WCS control layers

Characteristics / technical specifications

• Model: MAGMATIC
• Brand: SAVOYE
• System type: Bidirectional shuttle automated pallet storage
• Depth options: Single-depth or double-depth shuttle lanes
• Vehicle: Lightweight shuttle vehicles, low energy consumption
• Functions: Automated storage and retrieval; vehicles can exit storage to serve workstations
• Flow support: FIFO and LIFO capable
• Environment compatibility: Suitable for controlled-temperature and refrigerated/frozen applications (e.g. -28°C)
• Scalability: Modular design adaptable to throughput and SKU count
• Documentation: Product sheet / technical brochure available
