Order picker AMR

for warehousefor logisticselectric

Overview

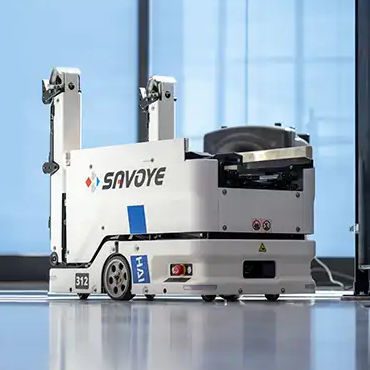

HAIPICK Climb (HAI Robotics technology integrated by SAVOYE) is an AMR goods-to-person solution designed for high-density order picking. Robots climb racking to retrieve totes at height and combine vertical and horizontal movements to deliver a continuous flow of totes to picking stations, enabling high storage density and increased throughput.

Operation and principle
The system uses autonomous robots that locate and extract totes from racking with a telescopic fork, then transport them to operator stations. Robots perform both aisle navigation and vertical access, enabling goods-to-person picking without heavy fixed infrastructure.

Navigation and onboard technologies
Onboard technologies include LiDAR, depth sensors, vision systems and SLAM algorithms for real-time mapping, obstacle detection and dynamic path planning. Positioning and navigation enable precise tote handling and safe coexistence with operators and other equipment.

Warehouse role and benefits

• Eliminates non-value travel for operators by bringing goods to the workstation.
• Shortens picking cycles and increases throughput during peak periods.
• Improves accuracy and traceability of movements.
• Enables incremental capacity growth by adding robots or racks.

Flexibility and scalability
HAIPICK Climb is modular and can be scaled according to operational needs. The Pay-as-you-grow approach allows phased deployment: start with a limited number of robots and aisles, then expand capacity by adding units or racks.

Installation and maintenance
The solution typically requires a single side rail per aisle, reducing installation complexity. Robots can travel under racks, simplifying routing and lowering maintenance constraints. This design supports fast deployment and streamlined upkeep.

Density: every meter counts

• Racking height up to 12 m, in single- or double-depth configurations.
• Aisle width reduced to 900 mm.
• No transverse aisles required.
• Storage and picking on both sides of the aisle.

Order picking station
Stations are designed for seamless robot–operator interaction with a focus on ergonomics and safety. Key features:

• Automated pick-and-place interface: robots deposit or retrieve totes directly at the station.
• Ergonomic layout to reduce operator strain.
• Safety features such as automatic doors and protective covers.
• Mobile design to allow station repositioning for layout changes.

Software and system integration
HAIPICK Climb integrates with WMS/WCS for mission assignment, inventory updates and fleet management. Centralized dashboards provide real-time monitoring and orchestration of robot tasks to optimize throughput.

Partnership and added value
The solution combines HAI Robotics climbing AMR technology with SAVOYE's integration and software expertise to deliver improved space utilization, higher throughput and operational flexibility for warehouses.

Characteristics / technical specifications

• Model: HAIPICK Climb (AMR goods-to-person with vertical access).
• Maximum racking height: up to 12 m.
• Depth: single- or double-depth configurations.
• Minimum aisle width: from 900 mm.
• No transverse aisles required.
• Storage and picking on both aisle sides.
• Robot capabilities: climb into racking, vertical and horizontal movement.
• Grip system: telescopic fork for totes/containers.
• Navigation and positioning: LiDAR / SLAM technologies.
• Infrastructure: single side rail per aisle (simplified installation).
• Maintenance: simplified design; robots can travel under racks.
• Scalability: modular design; add racks or robots as needed.
• Integration: compatible with WMS and WCS for real-time control and task allocation.
• Order picking station: automated pick-and-place, ergonomic and mobile, safety features (automatic doors/protections).
