Tension/compression load cell ZFA
S-beamstrain gaugesteel

tension/compression load cell
tension/compression load cell
tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
S-beam
Technology
strain gauge
Other characteristics
steel, nickel-plated, IP65
Rated load

Max.: 5,000 kg (11,023.11 lb)

Min.: 25 kg (55.12 lb)

Description

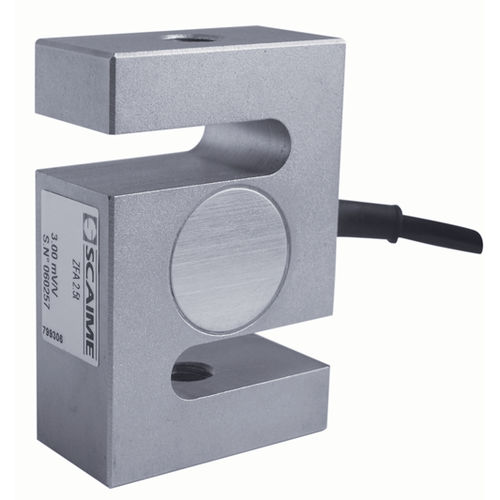

The ZFA is a tension load cell made from nickel-plated steel. It features a combined sensor error of 0.03% on a complete scale. This load cell is specifically designed to measure tension, compression, or tension-compression levels. It has an IP65 security rating and has a wide load capacity of 25, 50, 100, 200, 500, 1000, 2500, and 5000 kg.

Catalogs

No catalogs are available for this product.

See all of SCAIME‘s catalogs
