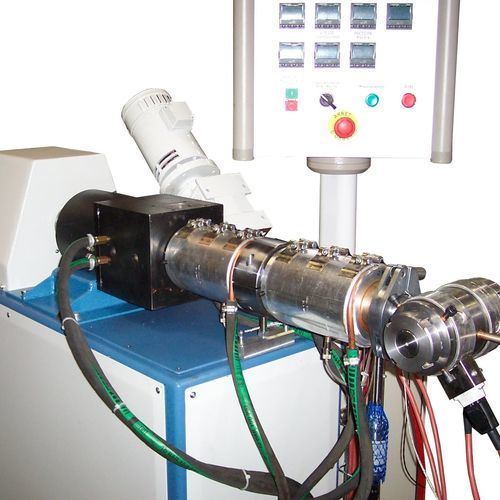

Single screw extruder
Add to favorites
Compare this product
Characteristics
- Number of screws
- single screw
- Screw diameter
Min.: 20 mm
(0.8 in)Max.: 30 mm
(1.2 in)- Weight
250 kg
(551 lb)- Power
8 kW
(10.88 hp)
Description
-welded sheet metal frame
-asynchronous drive unit 5,5 kW
-ball-bearing housing and thrust ball
-nitrided body, length 17 L/D
-screw design according to material
-ball-bearing mounted feed roller, driven by a geared motor with variable speed
-bi-conical clamp for the die head
-electrical heating on 2 independant zones on the body, cooling by circulating water coil.
-material pressure sensor
-material temperature sensor, low mass thermocouple J
-mounted on 4 casters
Catalogs
No catalogs are available for this product.
See all of SCAMEX‘s catalogsOther SCAMEX products
Extruders 20 to 30mm
