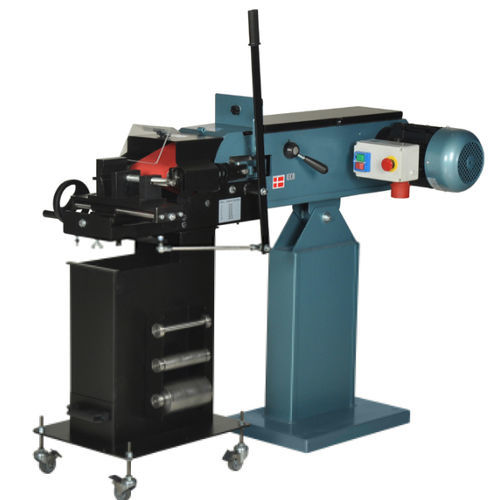

Pipe notching machine ARBOGA 75 RBX

ARBOGA 75 RBX are, first and foremost, apipe notcher which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 70 mm. However, the RB and RBX models are more than just efficient pipe grinders. They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finished. They can then be used for standard grinding tasks. If you need to grind the pipes with a centreless grinder, you can attach the centreless unit onto the 75 model: 3 grinding processes in one machine. Model RBX is delivered complete with built-in exhaust system. Product Specifications Voltage 3x400V-50 Hz Wheel size, Drive wheel (ø mm) 200x75x24 Wheel size, Contact wheel (ø mm) 200x75x20 Grinder Belt (mm) 75x2250 Grit 36 Belt speed (m/sec) 30 Grinding table (mm) 75x605 Pipe dimension (ø mm) 17-70 Grinding angles 0-60° Speed Numbers - Motor 1 With exhaust 1 Exhaust (m³/h) 600 Length (mm) 1350 Width (mm) 570 Height (mm) 1020
