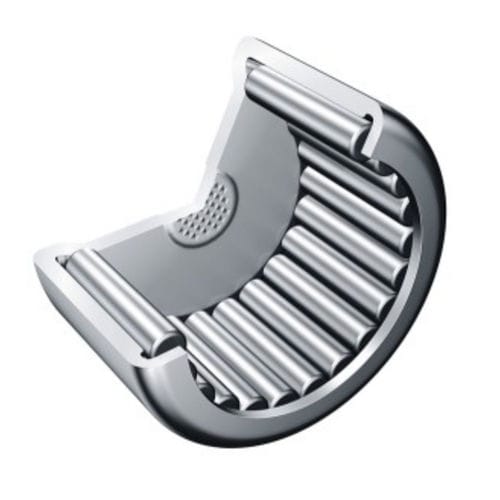

Drawn cup needle roller bearing BK series axialsteelsmall
Add to favorites
Compare this product
Characteristics
- Rolling element
- drawn cup needle roller
- Configuration
- axial
- Material
- steel
- Other characteristics
- small
- Inside diameter
Max.: 45 mm
(1.77 in)Min.: 3 mm
(0.12 in)- Outside diameter
Max.: 52 mm
(2.05 in)Min.: 6.5 mm
(0.26 in)- Width
Max.: 20 mm
(0.787 in)Min.: 6 mm
(0.236 in)
Description
Drawn cup needle roller bearings with closed ends
Some designs of drawn cup needle roller bearings are closed at one end. They are thus suitable for closing off the shaft ends of bearing arrangements. This provides protection against injury by rotating shafts and protects the bearing against contamination and moisture.
Depending on the size, the base is either smooth or lock-beaded (stiffened). Due to the profiled base, small axial guidance forces are possible.
