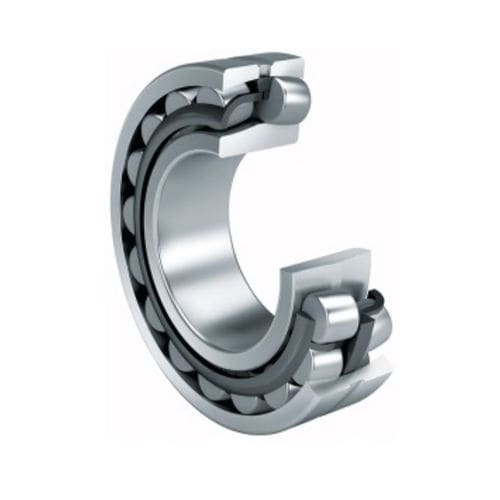

Spherical roller bearing 23030-E1-XL-TVPBsphericalsteelcombined
Add to favorites
Compare this product
Characteristics
- Rolling element
- spherical roller
- Configuration
- spherical
- Material
- steel
- Other characteristics
- combined
- Inside diameter
Min.: 20 mm
(0.79 in)Max.: 1,800 mm
(70.87 in)- Outside diameter
Min.: 72 mm
(2.83 in)Max.: 400 mm
(15.75 in)- Width
Min.: 19 mm
(0.748 in)Max.: 174 mm
(6.85 in)
Description
Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2° and are not only designed for high load carrying capacity but can also compensate misalignments.
X-life
Various sizes are supplied in the X-life grade. These bearings are indicated in the dimension tables.
