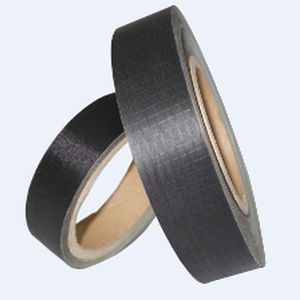

Conductive tape NiCu-C22

conductive tape
conductive tape
Add to favorites
Compare this product


fabric, polyester, copper


Schlegel Electronic Materials (SEM) offer the Black Conductive NiCu Fabric Tape which is similar to CFT(II) but blackened for the cosmetic purposes. The blackened conductive fabric was in rip-stop pattern with surface resistivity lower than 0.08 ohm/sq. The average shielding effectiveness over 95.6 dB in the frequency ranges from 20 MHz to 10 GHz. It provides the alternative to customer who prefer the black color conductive tape for the appearance design. Specifications Fabric: Nickel-Copper plated polyester ripstop fabric. Adhesive: High-tack, conductive adhesive system. Surface Resistivity: <= 0.08Ω/sq. Resistivity through adhesive: <=20 milliohms/square inch. Low Temperature Application: -40℉ (-40℃). Abrasion Resistance: No change is surface resistivity and no fabric degradation after more than 1,000 wear cycles. Test method: ASTM D3884. Shrinkage: <4% @ 180℃(356ºF) temperature. Peel Strength: 50 oz. Per inch minimum initial. Test Method: ASTM D3330. Shielding Effectiveness: 95.76dB Test method: Mil DTL 83528C.
