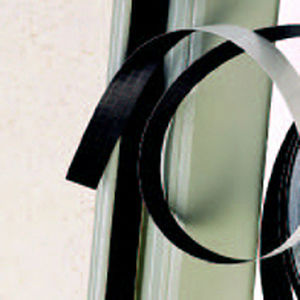

Conductive tape CST

sealingfabric

Higher conductivity without the sharp edges Conductive Silver Fabric Tape (CST) offers superb conductivity and ease of installation for a wide range of applications. The smooth, soft-edged tape will not crack after repeated flexing, or cause injuries. Schlegel Electronics Materials (SEM) CST achieves total coverage, even on irregular surfaces and experiences no significant shrinkage at temperatures up to 180ºC (356ºF). A unique, conductive Pressure Sensitive Adhesive (PSA) allows the tapes to be designed into higher temperature applications. The PSA is fire rate to UL 510, and excessive pressure is not required for application to the end unit. CST tape has an average shielding effectiveness of 70 dB in the range of 20 MHz to 10 GHz. CST’s protective C2 coating lowers the cathodic potential of the silver to make it galvanically compatible with a variety of EMI gaskets and cabinet surfaces. A superior alternative to sharp, non-conforming foil tapes, SEM’s lightweight Conductive Silver Tape is ideal for grounding and for sealing small apertures in frames. It achieves total coverage, and experiences no significant shrinkage at temperatures up to 180ºC (356ºF).
