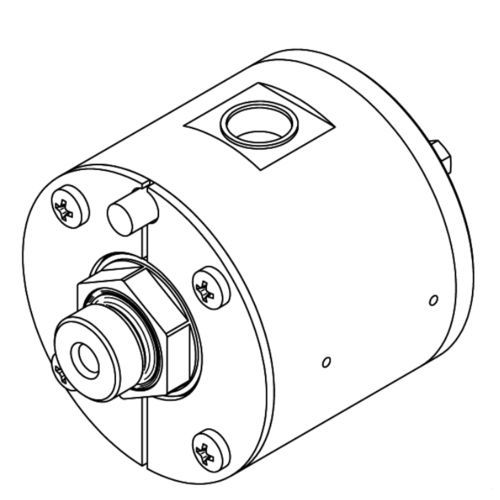

Water rotary joint 524100024Efor oilfor airradial
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for air, for oil
- Other characteristics
- radial, with slip ring
- Rotational speed
Max.: 35 rad.min-1
(5.57 rpm)Min.: 0 rad.min-1
(0 rpm)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Nominal size
98 mm
(3.858 in)
Description
Fits the following slip rings:
Material number: 5K0195158
Material number: 5K0195157
Material number: 5K0195128
Dimensions (installed):
ØO = 98 mm (plus grease nipplesl 8,5 mm)
L = 97 mm
Connection dimensions:
Rotor (axial): 1x G 3/4"
Stator (radial): 1x G 1/2"
Medium: air
pmax: 10 bar
max. flow rate: 1500 l/min
max. rpm: 35 min-1
min./max. temperature: 0°C bis +60 °C
