Water rotary joint 368000110E
for airfor gasfor oil

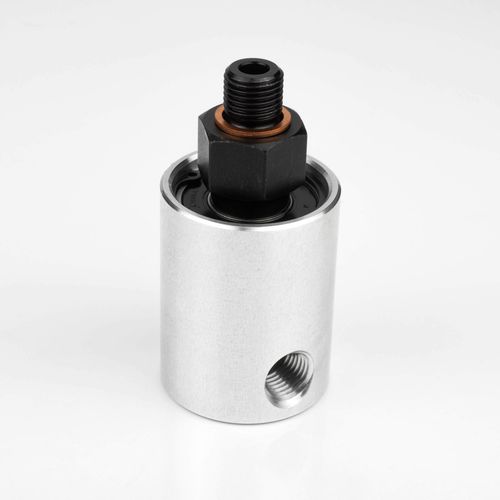

Water rotary joint - 368000110E - SCHLEIFRING GmbH - for air / for gas / for oil
Water rotary joint - 368000110E - SCHLEIFRING GmbH - for air / for gas / for oil
Water rotary joint - 368000110E - SCHLEIFRING GmbH - for air / for gas / for oil - image - 2
Water rotary joint - 368000110E - SCHLEIFRING GmbH - for air / for gas / for oil - image - 3
Water rotary joint - 368000110E - SCHLEIFRING GmbH - for air / for gas / for oil - image - 4
Water rotary joint - 368000110E - SCHLEIFRING GmbH - for air / for gas / for oil - image - 5
Add to favorites
Compare this product

Characteristics

Medium
for water, for air, for gas, for oil
Other characteristics
radial
Rotational speed

Max.: 3,500 rad.min-1
(557.04 rpm)

Min.: 0 rad.min-1
(0 rpm)

Pressure

10 bar
(145 psi)

Nominal size

41 mm
(1.614 in)

Description

Dimensions (installed): ØO = 41 mm x L = 69,5 mm Connecting dimensions: Rotor (axial): 1x G 1/4" A RH Stator (radial): 1x 1/4" NPT Pressure / Flow Rate air: 10 bar - 1133 Nl/min vacuum: 7 kPa hydraulics: 70 bar - 15 l/min Ømedium = 6,4 mm max. rpm: 3500 min-1 max. temperature: 120 °C dry-running: no width across flats WAF 22
