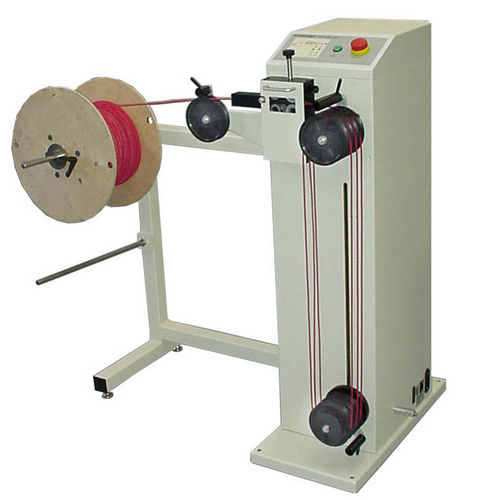

Automatic feeding system PreFeeder 2200

cablefor production lines

The PreFeeder 2200 is a free-standing, electrical prefeeding machine designed to pull wire and cable from reels weighing up to 70 kg (154 lbs.). The PreFeeder 2200 is a free-standing, electric-demand prefeeding machine designed to pull wire and cable from reels weighing up to 70 kg (154 lbs.) and provide a constant tension to downstream wire processing machines. A moveable dancer pulley allows the PreFeeder 2200 to easily respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines. Front-loading operating head for quick, tool-less cable changeovers Wide belts can pull cables up to 15 mm (0.60”) in diameter Universally adjustable cable guide eliminates individual guides that can be misplaced Powerful drive motor for turning heavy reels High maximum speed of 2.5 m/s (8.2 ft/s) keeps up with most cut, strip and terminate applications Large accumulation capacity 3.8 m (12.5 ft) easily handles high speed/high acceleration applications Simple controls and ergonomic panel height for easy operation
