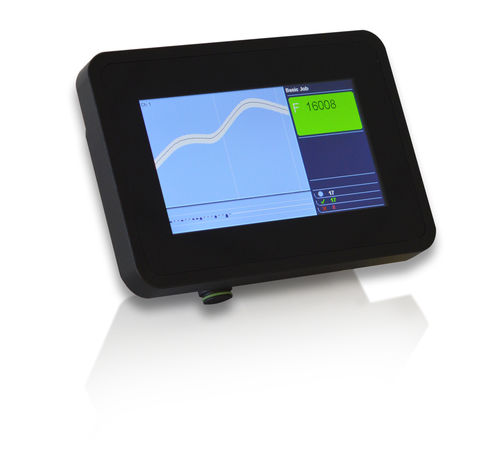

Force monitoring module ACO 08

measurementdevicefor crimping

The electronic crimp force monitoring system ACO 08 stands for highest production precision and enables manufacturers to produce an excellent, fully functional quality product. - User-friendly device management as well as simple referencing and operation - Job management for quick and easy setup processes - User administration for data and parameter protection - Generation of live force diagrams while production is running - Barcode interface for quick and easy job loadings - 8 GB of memory for jobs, force curves and data storage, as well as 4.3-inch touchscreen display Application Range The ACO 08 was designed to meet the high quality requirements of the wire harness industry. The ACO 08 is a compact device that can be easily integrated into all Schleuniger benchtop crimping presses, but also into similar third-party products. It enables the monitoring of crimping processes by analyzing each individual crimp force curve in detail while production is running, helps the operator to optimize processing steps, and documents measurement results. Material Metal Crimp Contacts Technical Data Measuring Range - 0 to 20,000 N (0 to 4496 lbf) Language - German, English, French, Italian, Spanish, Czech, Polish Interfaces - Ethernet (10/100BaseT) / USB interface / digital I/O Triggering - – External, e.g. digital signals – Internal Crimp References - 1 to 20 Baud Rate - Up to 115,200 Line Voltage - 24 VDC Power Consumption - 4,8 W Software - Wincrimp 8.0 for further analyses and statistics (optional) Memory Capacity - 8 GB (μSD) Human Interface Device (HID) - 4.3“ graphical touch screen (capacitive)
