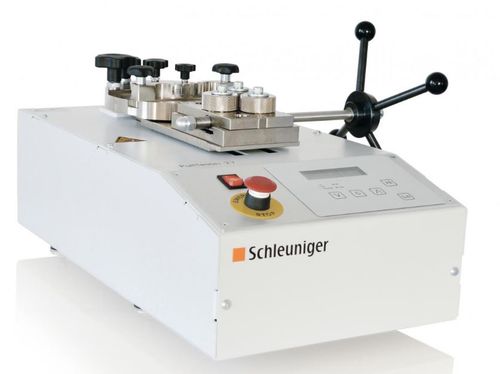

Pulling out force testing device PullTester 27

qualitymotorizedfor crimp connections

Schleuniger's PullTester 27 is a dual-range, motorized benchtop device designed to measure pull forces of wire crimp connections as well as ultrasonic metal welding connections on a wider range of wire than single-range pull test devices. The PullTester 27 is specially suited for quality assurance in a production environment. - Speed-controlled motor for consistent pull rates - Simple LCD display for easy programming & read out - Repeatable & accurate data - Dual-range for improved accuracy over a wider range of wires - RS 232 interface for curve analysis & statistics with optional WinCrimp PC software Schleuniger’s PullTester 27 is a dual-range, motorized, benchtop unit designed to measure pull-test forces of crimp and ultrasonic weld connections on a wider range of wires than single-range pull-test devices. Pull-test values are critical parameters for quality control and assurance. This versatile machine has two versions with two measuring ranges each, which are individually calibrated, enabling use for small or large cables. PullTester 27 (standard): 2,000 / 5,000 N (440 / 1,100 lbf.) PullTester 27-10 (special): 5,000 / 10,000 N (1,100 / 2,200 lbf.) This dual-range capability ensures the highest accuracy for the widest range of applications. Hand-actuated or pneumatic pull-test devices can give inconsistent data depending on the operator or pull rate. Some standards specify that a test device must pull with a consistent rate.
