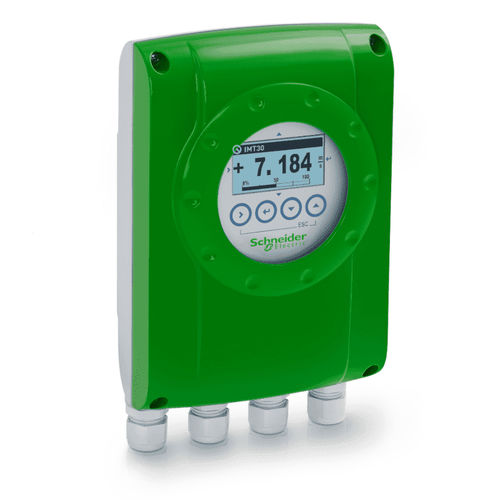

Magnetic flow transmitter IMT30A

volumefor liquidsgas

range of product - Flow Product or component type - Magnetic flowmeter transmitter Device application - To measure the flow of pressure for liquid, gas, steam Market segment - Water Product specific application - Water and waste water Water distribution network Irrigation Water abstraction Clean-in-place HVAC [Us] rated supply voltage - 100...230 V AC 24 V DC Maximum power consumption in VA - 15 VA AC Output type - Binary Current Pulsed output Maximum power consumption in W - 5.6 W DC communication port protocol - Hart protocol tolerance Modbus Electrical conductivity - 5 µS/cm drift of the sensitivity - +/- 0.01 % Network and machine diagnosis type - Local counter Empty pipe detection Housing material - Aluminum polyester coated Mounting location - Directly connect to the flow sensor Wall mounting Ambient air temperature for operation - -40…70 °C product certifications - CE Ambient air temperature for storage - -45…65 °C -40…65 °C
