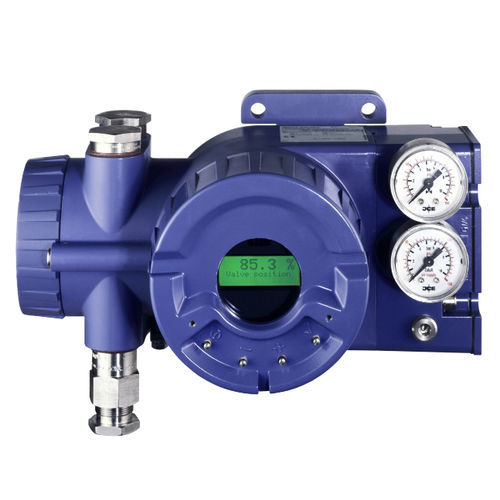

Pneumatic valve positioner SRD960rotarylineardouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary, linear
- Configuration
- double-acting, single-acting
- Protection class
- IP66, ATEX
- Other characteristics
- smart, aluminum, ATEX
- Stroke
Max.: 260 mm
(10.2 in)Min.: 8 mm
(0.3 in)- Pressure
Max.: 6 bar
(87 psi)Min.: 0 bar
(0 psi)- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)- Rotation angle
Max.: 95 °
Min.: 0 °
Description
range of product
- Valve Positioners
Product or component type
- Valve positioner
Communication port protocol
- HART, 4...20 mA
Profibus
FOUNDATION fieldbus
Market segment
- Process industry
Housing material
- Aluminium alloy
Pneumatic connection type
- 0.25 inch 18 NPT
G 1/4
Network and machine diagnosis type
- Auto diagnostic
Step response analysis
Position and response histogramms
Safety level
- SIL 3
Maximum hysteresis
- 0.3 %
linearity
- < 0.4 % of the travel span
Pneumatic operation
- Single acting
Double acting
NEMA degree of protection
- NEMA 4X
Product certifications
- ATEX
FM
CSA
