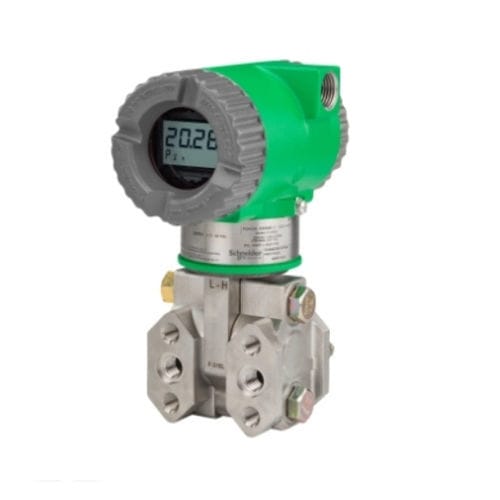

Absolute pressure transmitter IAP05SsiliconHARTModbus
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- silicon
- Output
- HART, Modbus
- Material
- stainless steel, aluminum
- Protection level
- ATEX, IP67, IP66, NEMA 4X
- Other characteristics
- with display
- Pressure range
Max.: 207 bar
(3,002.28 psi)Min.: 0 bar
(0 psi)2,068 bar
(29,993.8 psi)- Precision
0.08 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
range of product
- Pressure
Product or component type
- Pressure transmitter
Type of measurement
- Differential
turndown
- 400:1
Response time
- 125 ms
mounting type
- Direct connect
Low profile
Biplanar
drift
- +/- 0.05 % of measuring range per year, for 10 years
Low Power
NEMA degree of protection
- NEMA 4X
Product certifications
- FM
CSA
ATEX
IEC-Ex
EAC
INMETRO
TÜV Rheinland (SIL3)
NEPSI
Standards
- NACE MR01-03
Unit Type of Package 1
- PCE
Number of Units in Package 1
- 1
